UP-828P Vehicle Forensics Chip-Off Kit - Main Programmer + 10 Adapters

Overview

The UP-828P Vehicle Forensics Chip-Off Kit brings together the UP-828P universal programmer and ten UP-828P socket adapters chosen for the flash memory packages most often found on car stereos, head units, navigation units and telematics modules. It is built for vehicle examiners, digital forensic laboratories and data recovery engineers who need to remove a memory chip from a damaged, locked or non-booting unit and capture a complete raw image for analysis.

Every adapter is a genuine UP-828P (P-series) socket. Older UP-828 adapters without the "P" suffix do not fit this programmer, so buying the set together removes any doubt over compatibility.

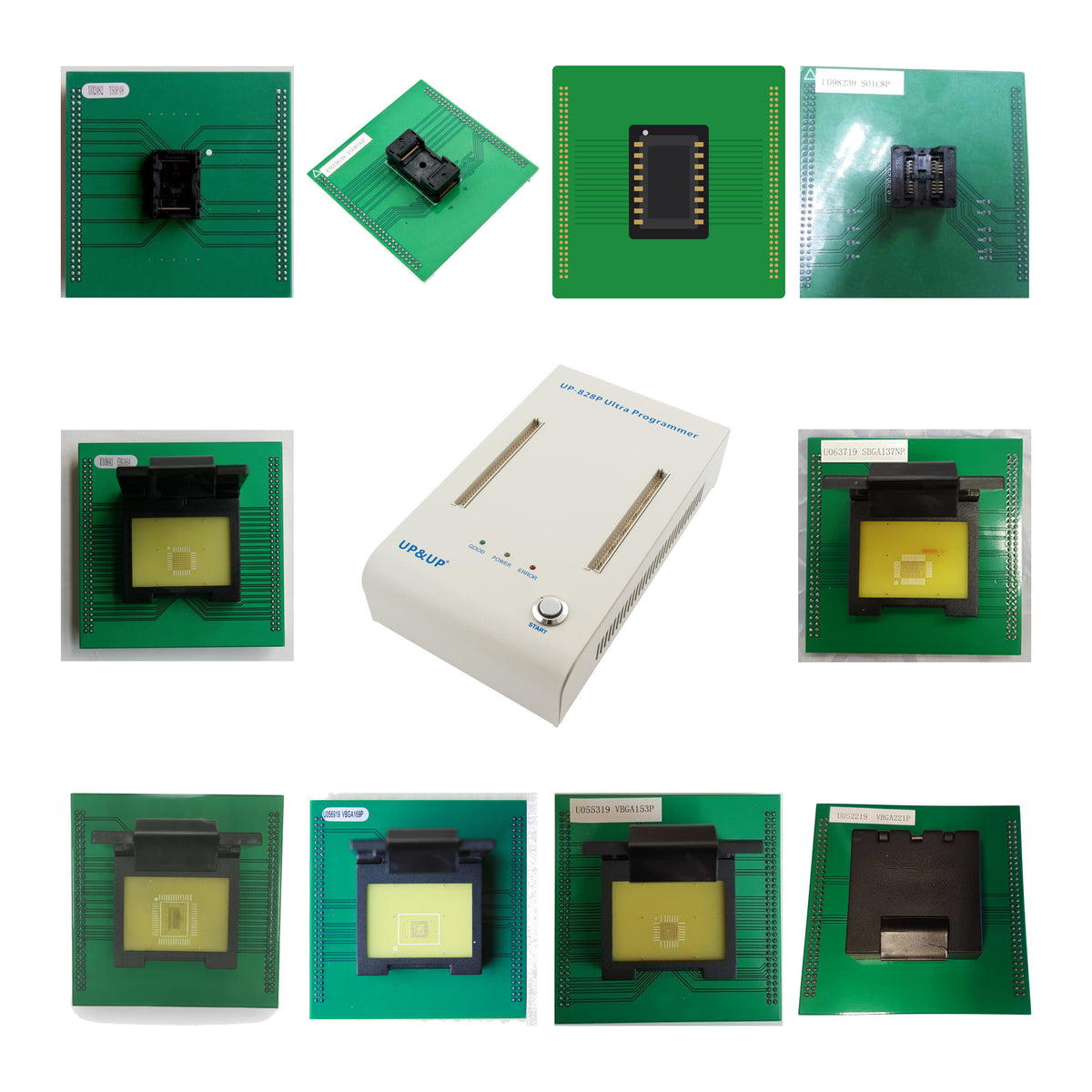

What's in the kit

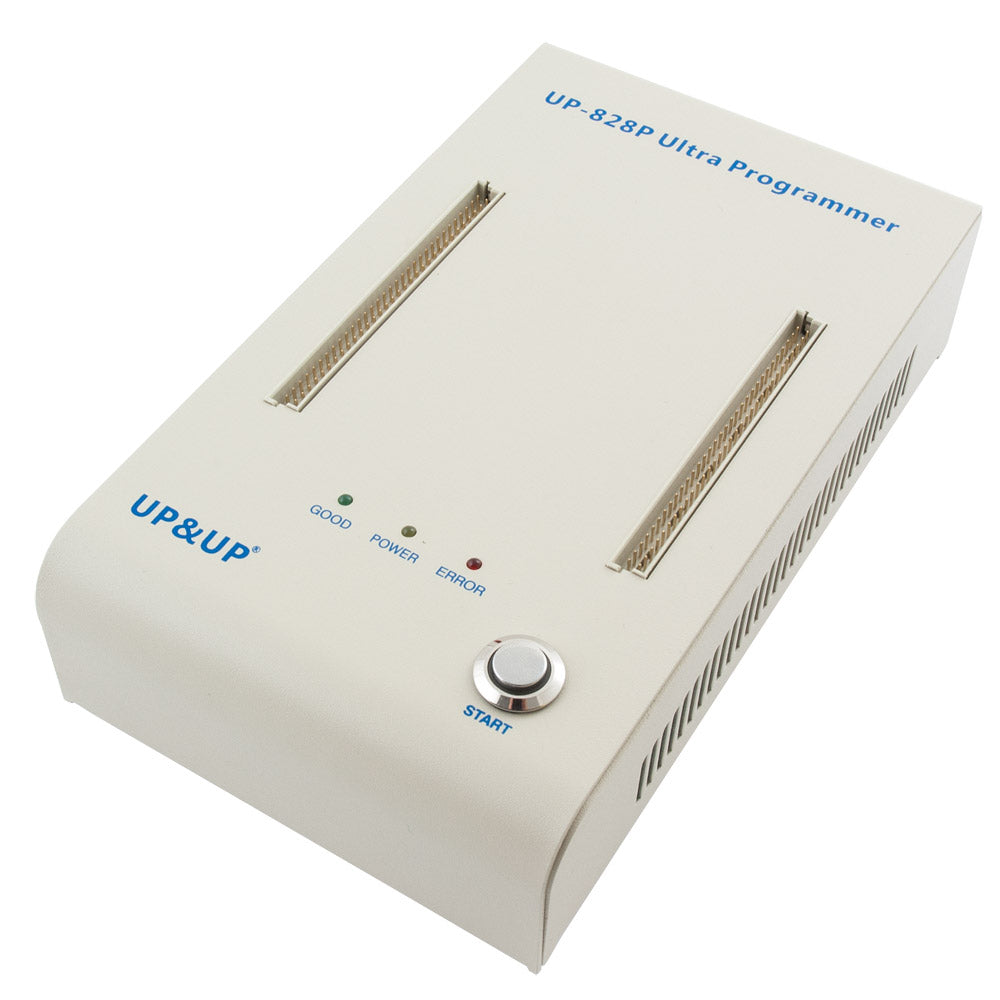

• UP-828P Universal Programmer with power supply and USB cable. Reads NOR, NAND, serial flash, eMMC, eMCP and iNAND parts and saves a plain binary image.

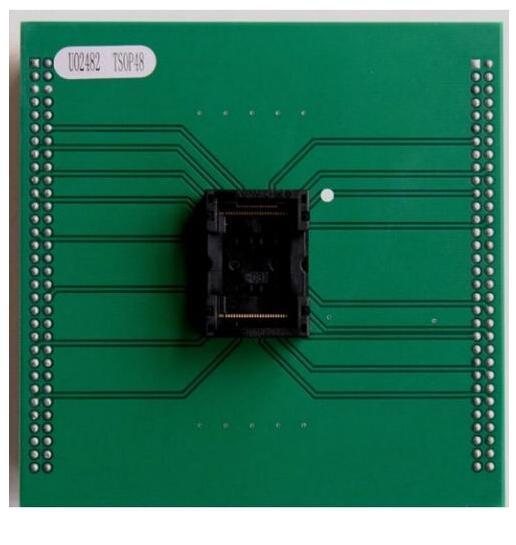

• TSOP48P adapter for 48-pin TSOP NAND, common on older head units and navigation boards.

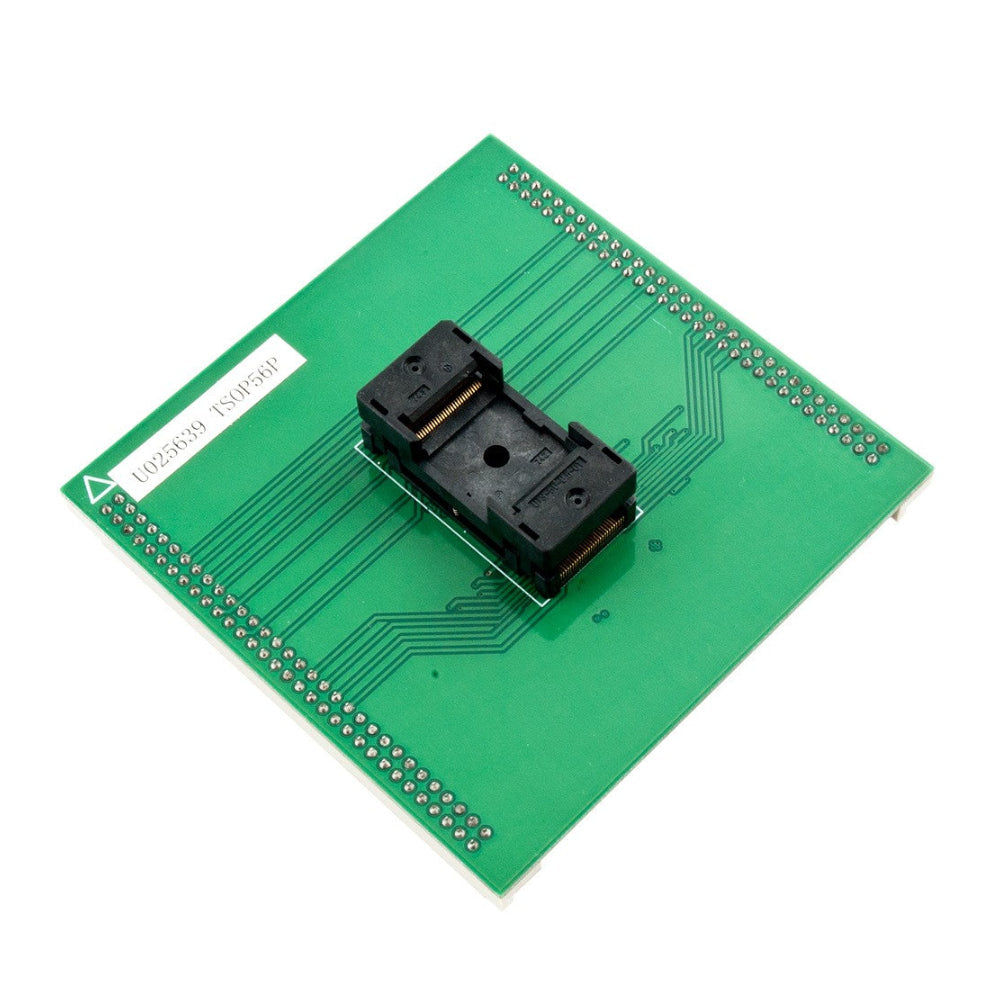

• TSOP56 adapter for 56-pin TSOP parallel NOR flash used on telematics and control modules.

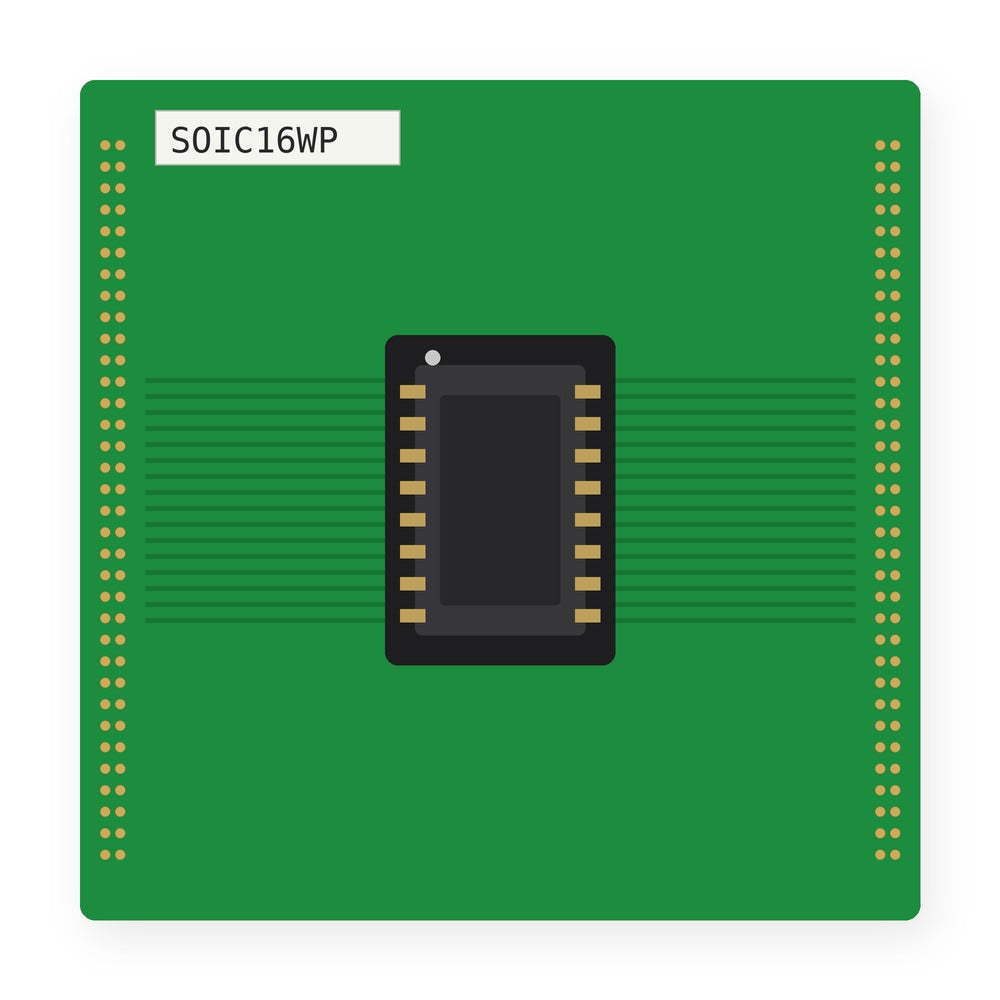

• SOIC16WP adapter for 16-pin wide-body SOIC serial flash, often used as boot memory.

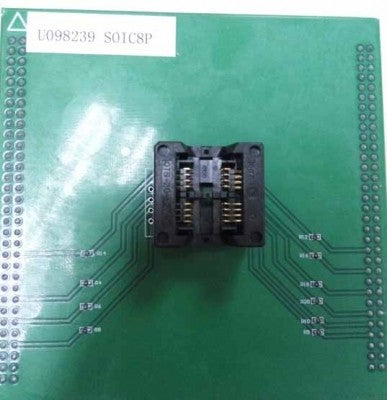

• SOIC8P adapter for 8-pin SOIC serial flash on telematics and controller boards.

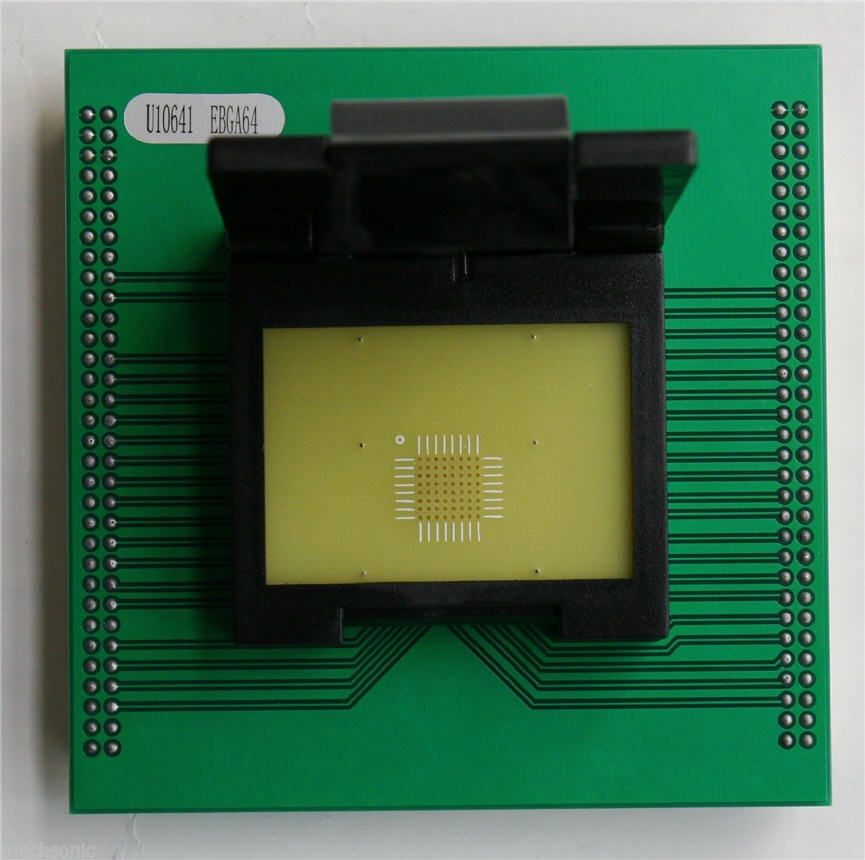

• EBGA64P adapter for 64-ball BGA flash (1.0 mm pitch, 8 x 8 array).
• FBGA137P adapter for 137-ball BGA memory (0.8 mm pitch).
• VBGA162NP adapter for 162-ball BGA eMMC and NAND memory.

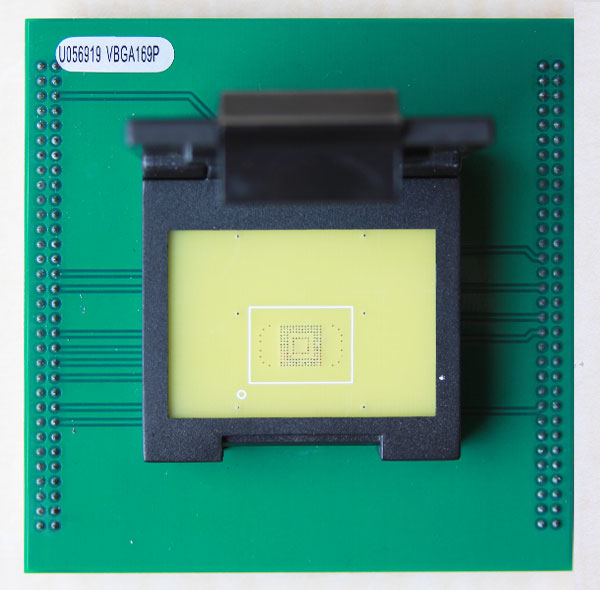

• VBGA169P adapter for 169-ball eMMC and iNAND in a 12 x 16 mm body.

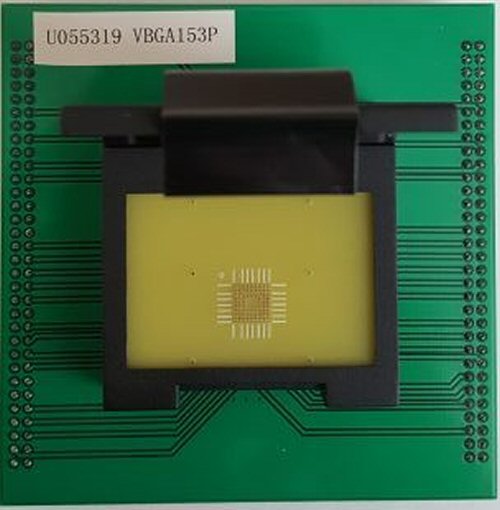

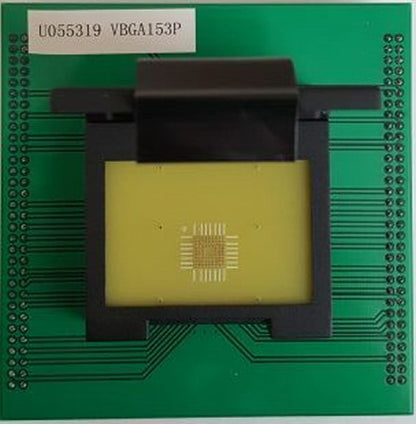

• VBGA153P adapter for 153-ball eMMC in an 11.5 x 13 mm body.

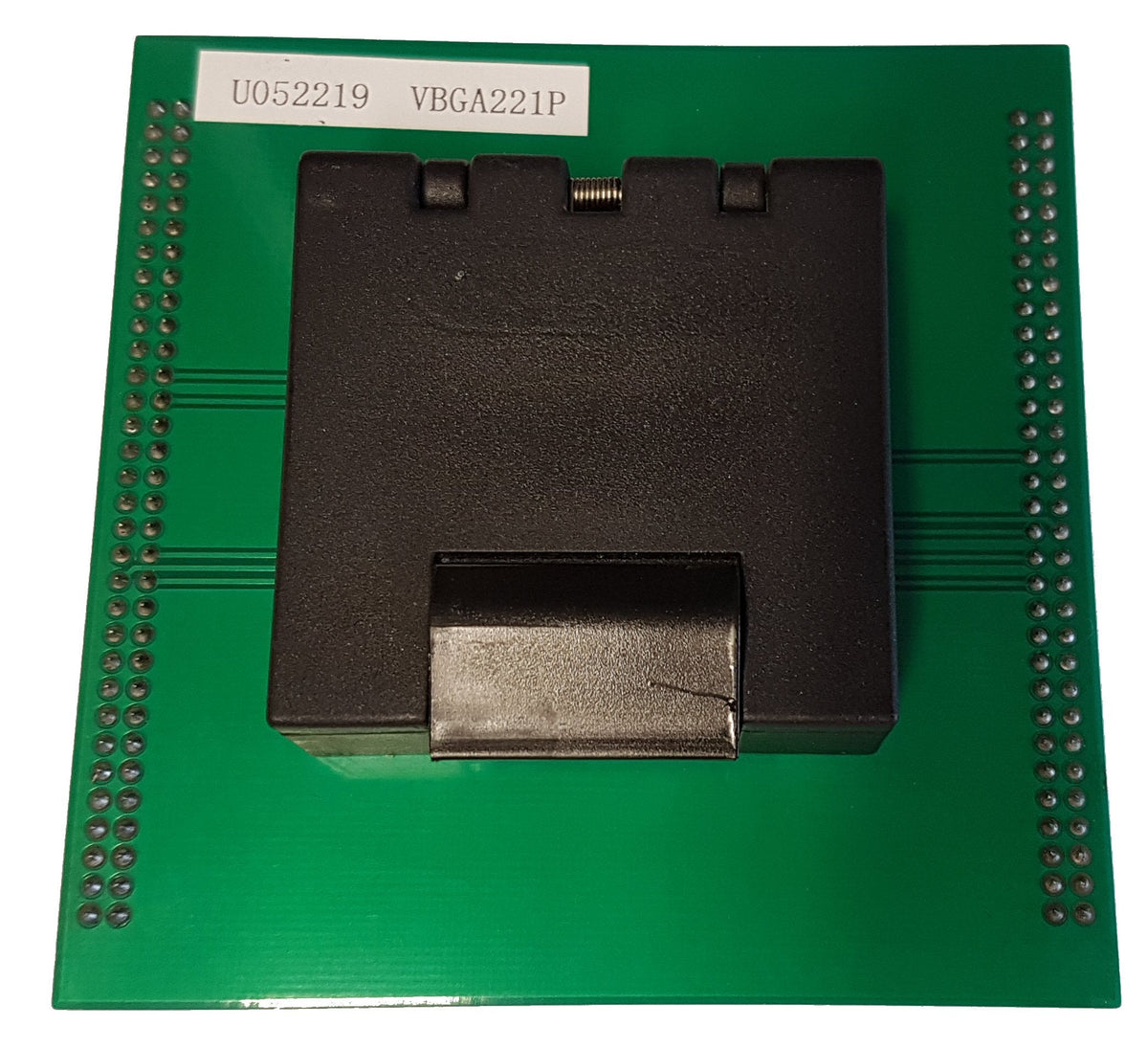

• VBGA221P adapter for 221-ball eMCP memory.

Package and typical use

The kit ships as the programmer plus the ten adapters listed above. A typical job runs like this: identify the memory from the marking on the chip, choose the socket that matches its package and body size, remove and clean the chip, then seat it in the adapter. The UP-828P checks pin contact before reading and saves a full image, including eMMC boot partitions where the part has them. Hash the image and import it into the vehicle or mobile forensic analysis software your lab is licensed to use. The same programmer also reads eMMC, eMCP and NAND from phones and tablets with the right socket.

Why buy as a kit

• One order covers the TSOP, SOIC and BGA packages that come up again and again on vehicle boards, so a job is not held up waiting for a socket.
• Programmer and adapters are all matched UP-828P (P-series) parts.
• Better value than buying the programmer and ten adapters separately.
• UK stock, UK support and a single invoice for procurement.

Requirements

• A Windows PC with a free USB port. Programmer software and access details are supplied with the order.
• Chip removal and rework equipment (hot air or IR station, flux, cleaning and reballing tools) is not included.
• Match the socket to the chip package and body size, not to the make of vehicle. Confirm the part is supported before removing it from the board.
• For lawful forensic, data recovery and engineering work by people authorised to examine the unit. FoneFunShop is an independent UK supplier; this kit is not affiliated with or endorsed by any vehicle forensic software publisher.
