DC Power Test Cable For iPhone 8 to 17 Pro Max - Power Logicboards Via Bench Supply Ultra Soft Connection

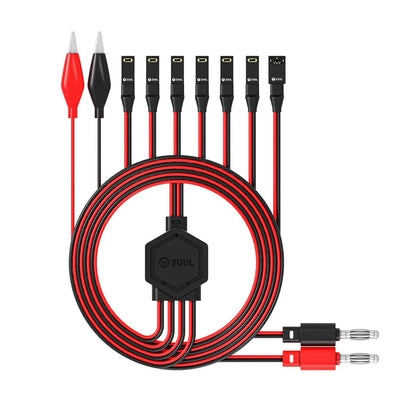

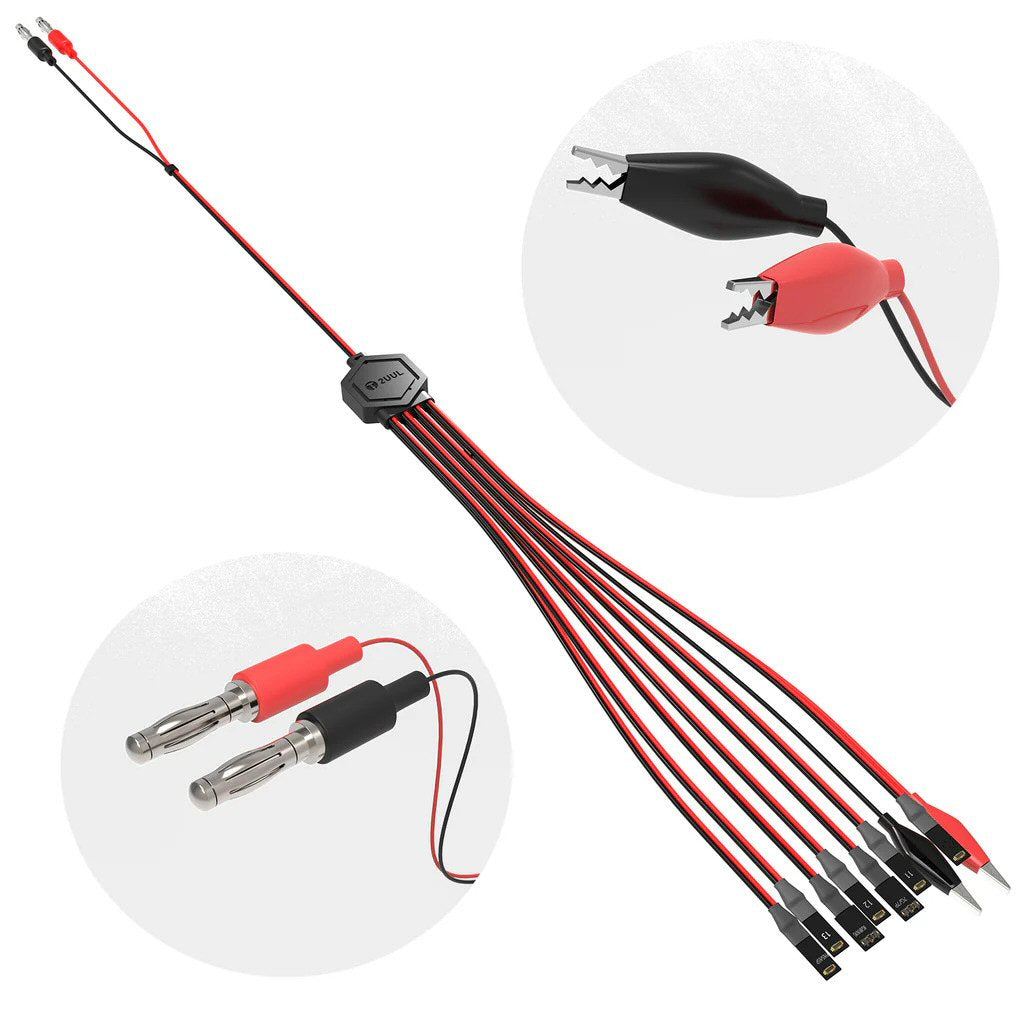

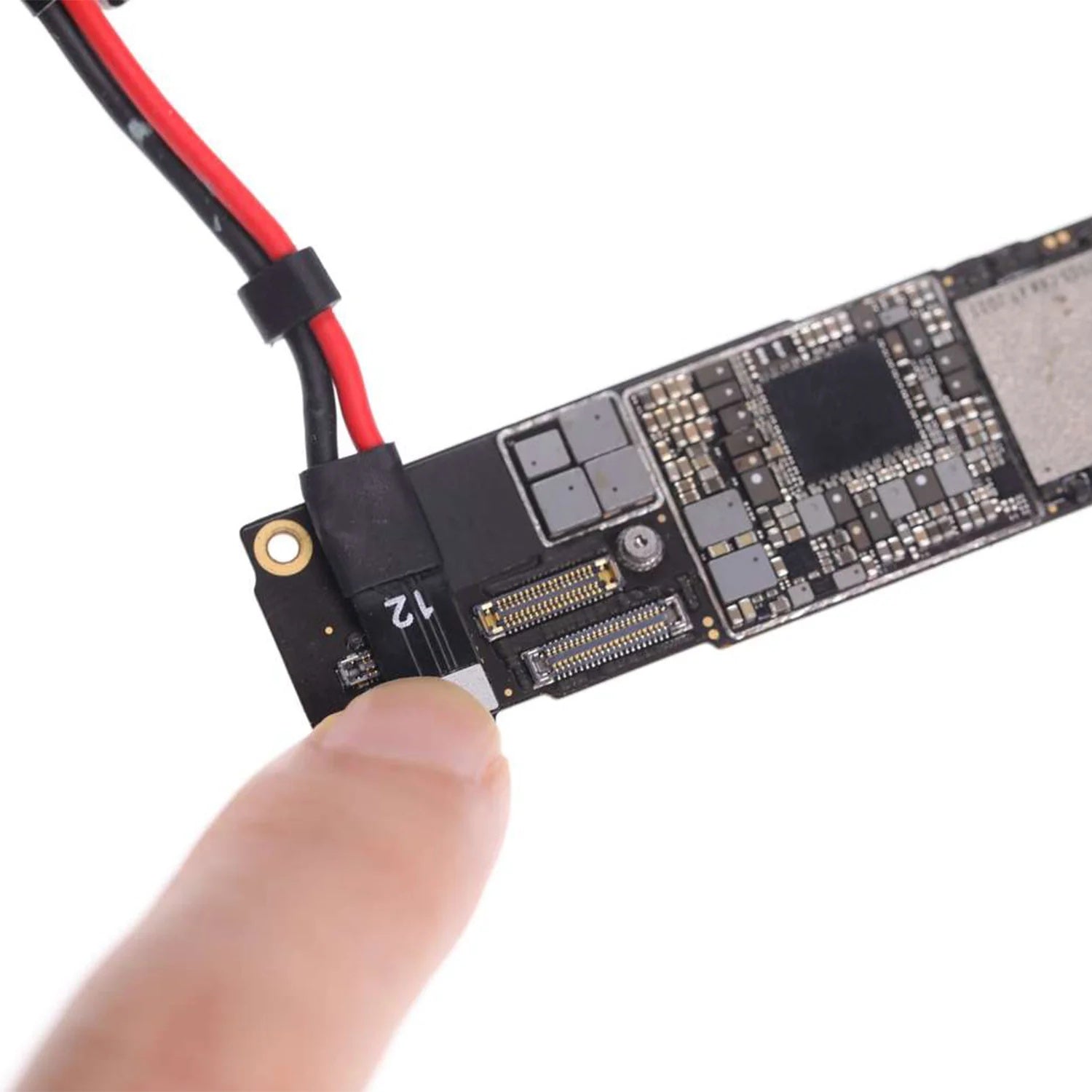

DC Power Line supply test cable with Ultra Soft fpc connections for booting and powering iP main boards during repair. Connects to your bench power supply via banana plugs at one end and to the iP power FPC connector or charging pads at the other.

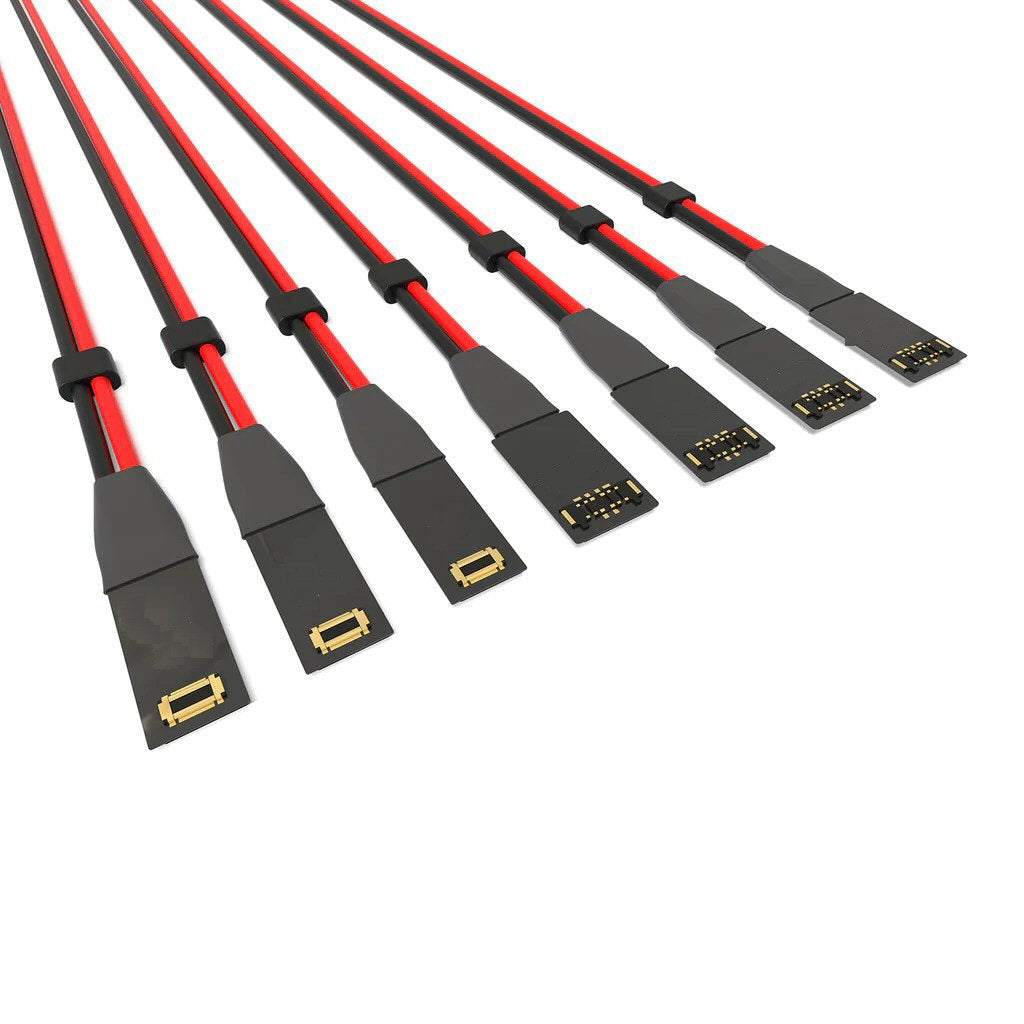

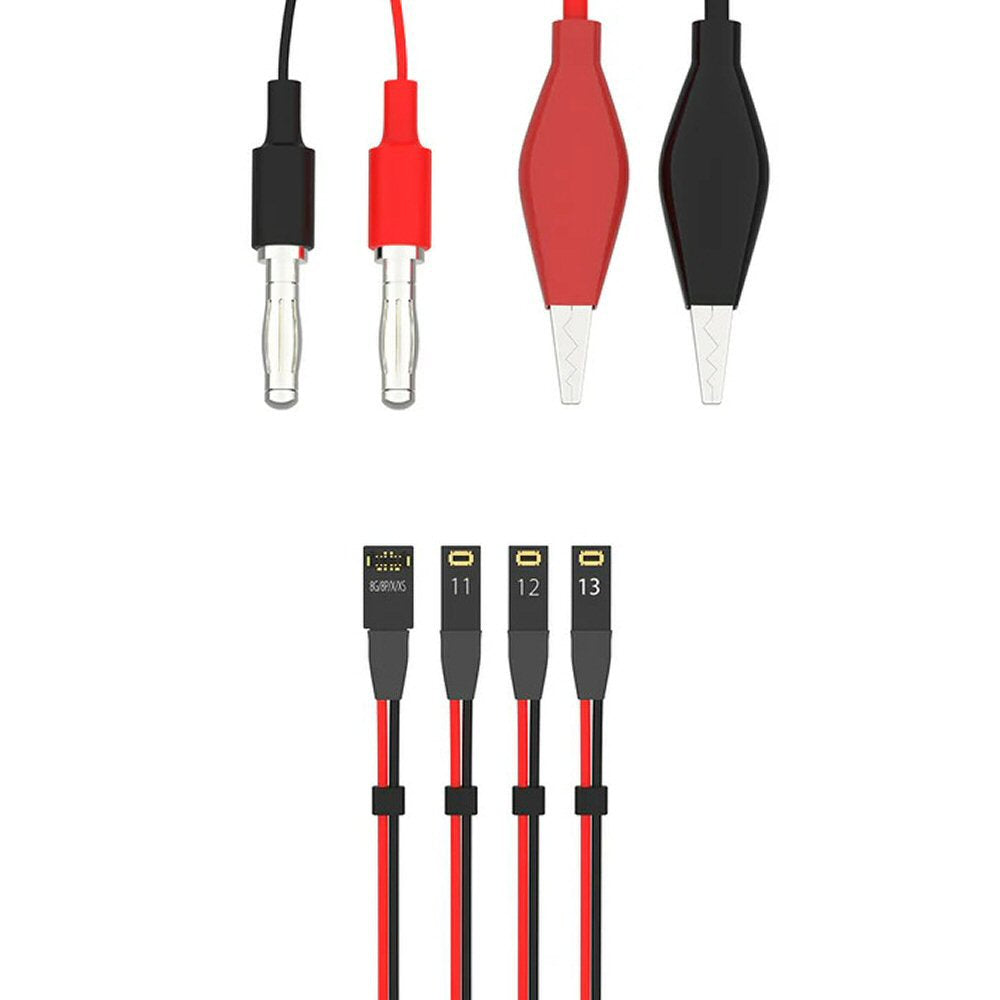

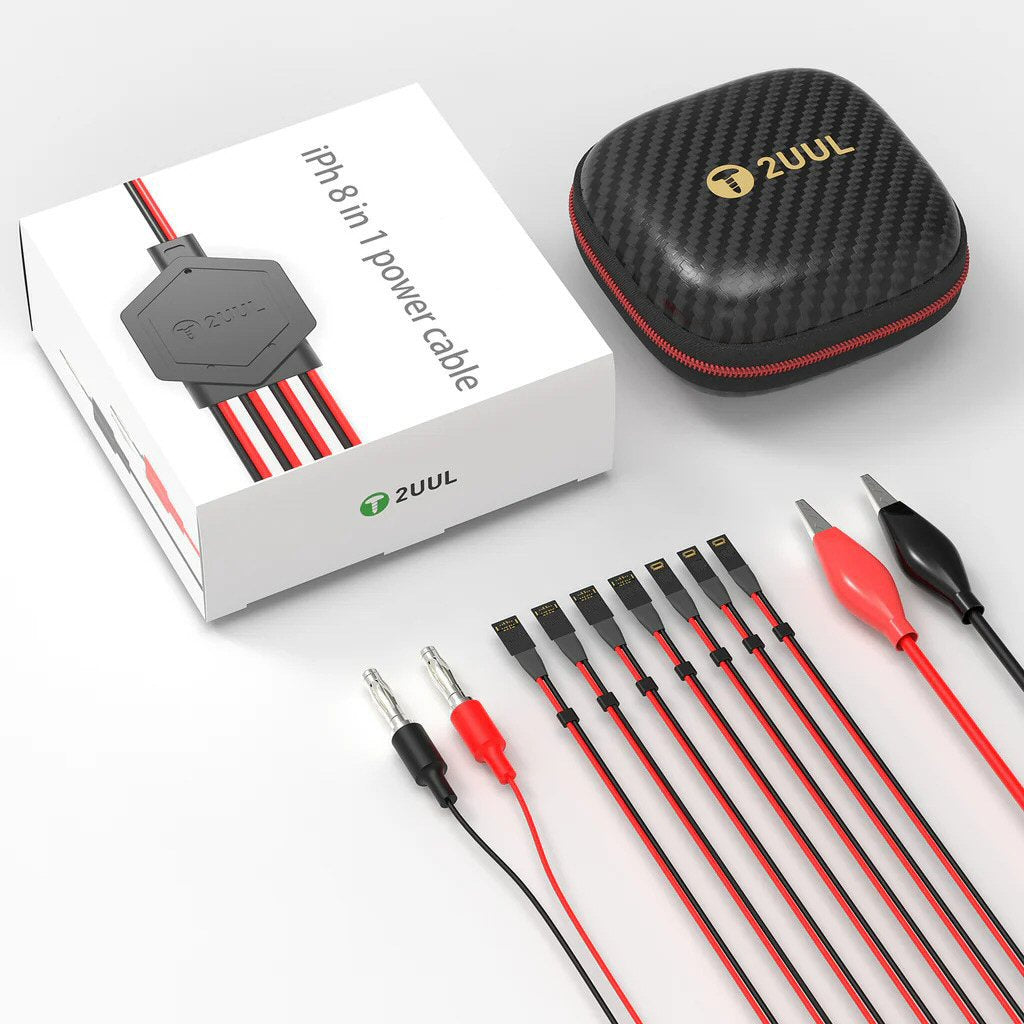

The cable covers the iP 8 to 17 Pro Max range from one tool. Each terminal is colour-coded and labelled, so you can pick the right one for the model you are working on. A pair of alligator clips is included for clamping to bare pads where an FPC terminal is not fitted.

Features:

• Perfect Fit: Terminals for iP 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max, SE2, SE3, 12, 12 mini, 12 Pro, 12 Pro Max, 13, 13 mini, 13 Pro, 13 Pro Max, 14, 14 Plus, 14 Pro, 14 Pro Max, 15, 15 Plus, 15 Pro, 15 Pro Max, 16, 16 Plus, 16 Pro, 16 Pro Max, 17, 17 Plus, 17 Pro and 17 Pro Max.
• Communication Protocol: Reports serial number and charge level so the board boots normally instead of dropping into recovery.
• Stable Boot: Holds power through reboots so the iP stays running during diagnostic work and stress testing.

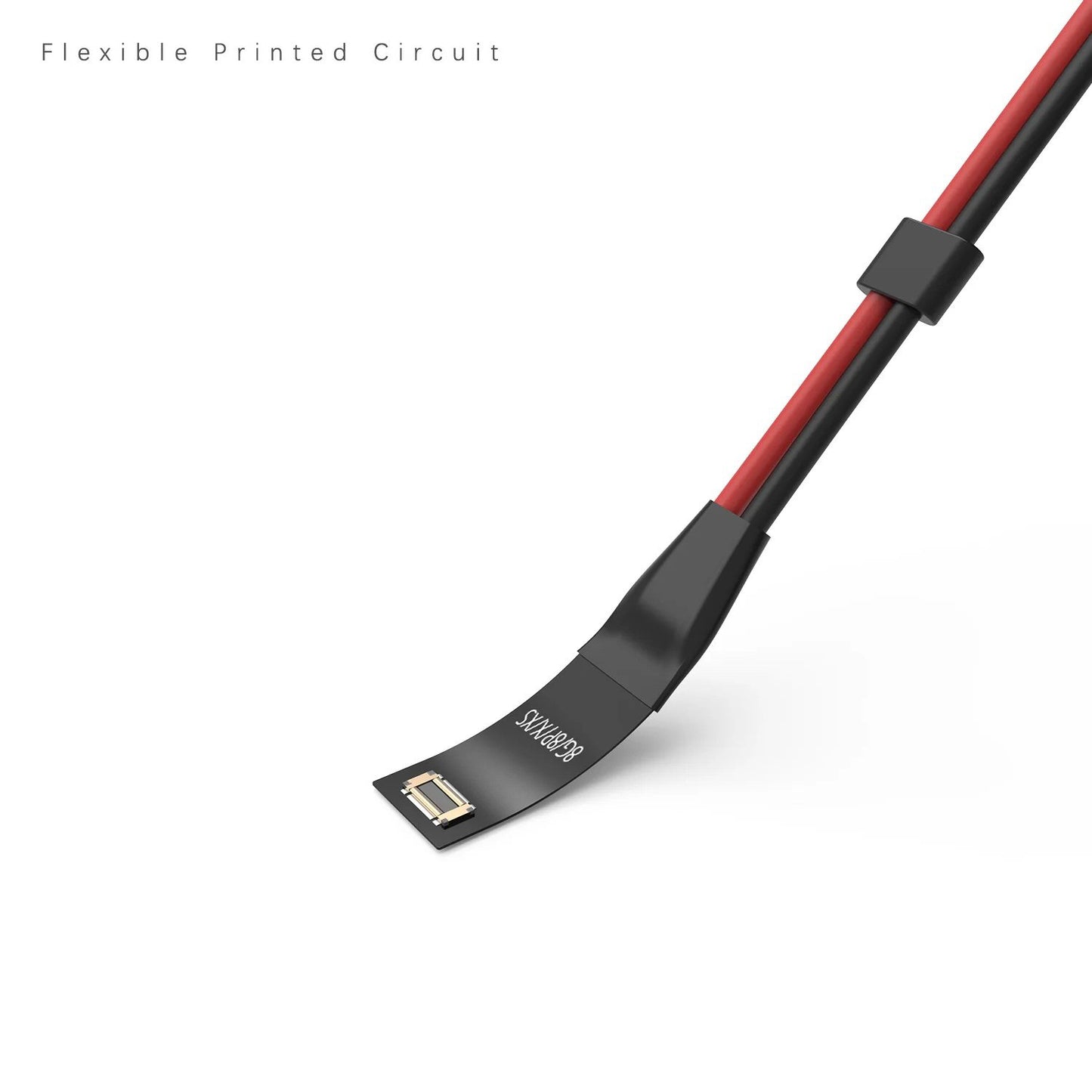

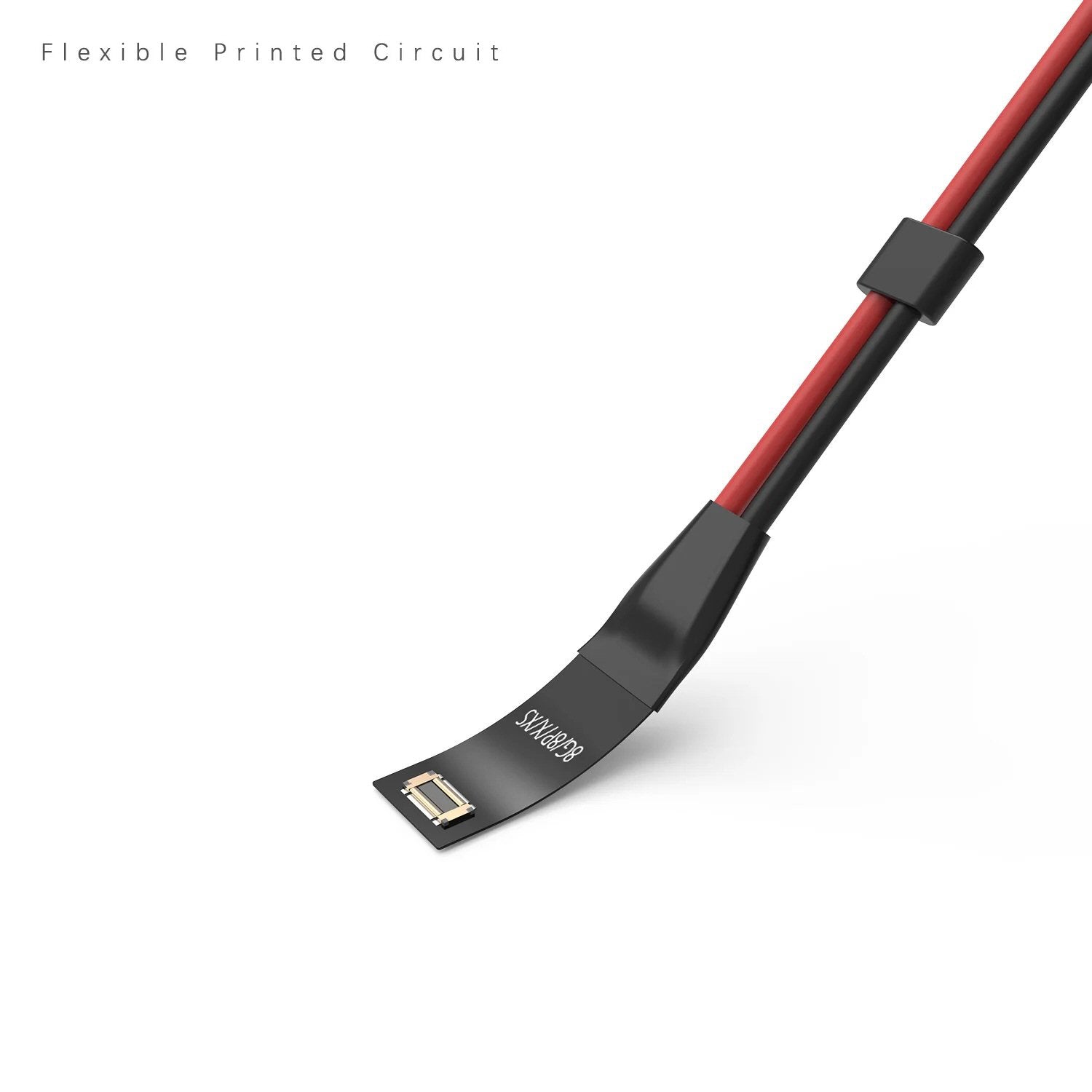

• Soft FPC Design: Flexible FPC ribbon that mimics the original connection flex and lays flat against the board.
• Built-in Protection: Onboard protection circuit guards against short circuits during power-up.

In-Depth

Includes communication protocol support with serial number recognition and power level display.

Does not restart when powered on; operates stably and supports advanced testing equipment.

Resolves the issue where standard power cables (8th generation and above) fail to reboot into the system.

Ultra-low standby power consumption without affecting repair machine current detection.

Simulates the original power cell cable using a flexible FPC soft cable design
Built-in core protection board to prevent short-circuit damage

Compatibility:

Compatible with iP 8 to 17 Pro Max main boards.

Works with any bench DC power supply that can deliver 4 to 5 volts at the appropriate current.

Package Contents:

• 1 x DC Power Test Cable For iP 8 to 17 Pro Max.
