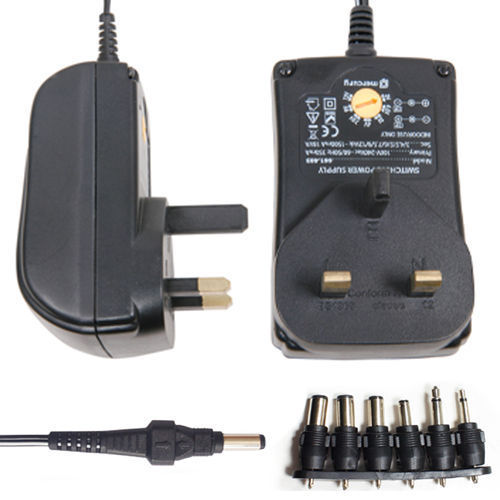

Universal Power Supply (3V, 4.5V, 5V, 6V, 7.5V, 9V and 12V)

Imagine a world where every electronic device requires its own unique power adapter. A tangled mess of cords, a drawer overflowing with incompatible plugs, and a constant struggle to find the right one for each device. This is the reality for many, a constant frustration fuelled by the ever-growing diversity of electronics and their varied voltage requirements.

The Universal Power Supply with adjustable Output Voltage of (3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V) is ideal for use with Hand Held Games, Toys, Radios, CD Players and Calculators, along with a variety of other applications.

Has the flexibility to charge a multitude of appliances through its choice of connectors and voltage settings.
Works well on all items which have an AC-DC adapter connection and is a good alternative to batteries.

Short Circuit Protection and Automatic overload cut-off safety features.
Long Cable Length of 1.8m.

Adapter Pin Sizes:
2.5mm (Male)
3.5 mm (Male)
3.5 x 1.35mm (Female)
5.0 x 2.1mm (Female)
5.5 x 2.5mm (Female)
5.5 x 1.5mm (Female)


The adapter will power equipment requiring a single DC supply voltage up to a current consumption of 600mA. Please make sure you use the correct DC output setting before turning the power on. The DC output voltages supplied by this adapter are clearly marked by the voltage selector switch. Check the voltage requirements of your equipment/appliance that you require this adapter for, by referring to the manufacturer's manual/handbook.

Specification:
Input: AC 100-240V~50/60Hz 13W, UK 3 Pin Plug
Output voltage selectable range: DC 3, 4.5, 5, 6, 7.5, 9, 12V
Output current max values:
3/4.5/5v DC - 600ma
6v DC- 500ma
7.5v DC - 480ma
9v DC - 400ma
12v DC - 300ma

Thermal fuse protection.
An LED indicator shows when the unit is powered.
Designed to conform to British Safety Standards BS-EN 60065.
Complies with EMC regulations.
CE, FCC, RoHS certified

Package Content:
1 x Universal Power Supply (3V, 4.5V, 5V, 6V, 7.5V, 9V and 12V)
