VR Table For JTAG EMMC RJ45 FBus USB Fbus 10 Arm Version
Next image
Zoom image

VR Table For JTAG EMMC RJ45 FBus USB Fbus 10 Arm Version


Score: 4.50 (votes: 2)
1

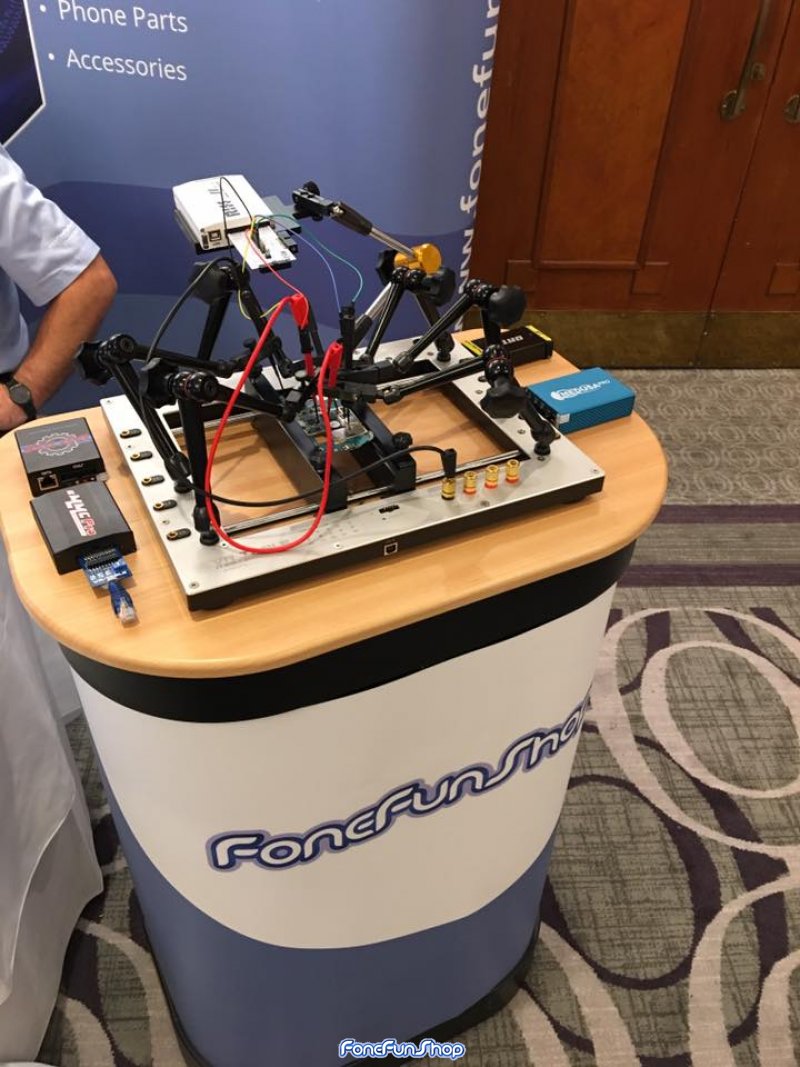

VR Table is used to accurately pinpoint eMMC and JTAG pinouts on mobile smart phones.

This VR Table supports EMMC, JTAG, Car Diagnostic, USB FBUS, RJ45 FBUS connectivity as it comes with 3 x extra arms to support JTAG connection aswell as 6 arms needed for eMMC connection, aswell as 1 arm as holder for your jtag/emmc/nokia box

Buy more for less:
1-4 items $1614.10 / each
5-7 items $1565.68 / each save 3%
8-9 items $1549.53 / each save 4%
10 or more items $1533.39 / each save 5%
  • $1614.10
Qty:

VR Table For JTAG - EMMC - RJ45 FBus - USB Fbus (10 Arm Version)

Did you know you can now perform physical memory dumps of android devices emmc chip without the need for chip-off or indeed any soldering?
With the New VR Table you can connect to the phones eMMC chip via ISP (in system programming) also known as DIRECT EMMC without any soldering at all !!

This VR Table supports both EMMC and JTAG connectivity. as it comes with 3 x extra arms to support JTAG connection aswell as 6 arms needed for eMMC connection.

VR Table is used to accurately pinpoint eMMC and JTAG pinouts on mobile smart phones.

VR Tablecan also be used to replace nokia fbus cables, and even support newer phone models that do not yet have a compatible cable available.

VR Table is also compatible with car diagnostic tools too.

VR Table will replace the need for any soldering or use of individual JTAG/ eMMC jigs.

future proof compatibility means no more buying jigs.

when connected to your preferred emmc or jtag box you can then position each test point accurately and safely without need for soldering.

Once all connections are made, you can then perform eMMC or JTAG connection with ease, enabling you to read/write data for extraction or repair.





Compatible with most JTAG/eMMC Tools including:

  • EMMC Pro Tool
  • GPG EMMC
  • ORT JTAG Pro with EMMC Tool
  • Z3X Easy Jtag
  • Riff Box
  • Riff Box 2
  • Medusa Pro Box
  • Medusa Box


Package Contents
  • - VR-Table main unit
  • - 9 VRArms 300mm for JTAG/EMMC/FBUS
  • - 11 probes for putting into VR Arms
  • - 9 communication cables banana of use with FBUS/VCC/VCCq
  • - 1 x VR Holder ARM
  • - 1 x VR holder for devices
  • - 1 x Universal JE-02 RJ45/Rj48/IDC 20 pin adapter for various devices with config page
  • - 1 x 17cm connection cables for signal routing from JE-02 adapter
  • - USB ferrite cable
  • - TORX key
  • - Brief case where VR can be stored for travel



    • Weight
      10 kg
    • SKU
      vrtable
    • UPC/ISBN
      734463700138
  • Brand
    fonefunshop
  • Compatible Brand
    Universal
  • Model
    vrtable
  • Model Number
    vrtable
  • Country/Region of Manufacture
    China
  • Manufacturer warranty
    3 Months from date of purchase
  • Weight
    10kg
  • Number of Pieces
    1
  • Unit Quantity
    1
  • Unit Type
    Unit
  • Year Manufactured
    2021
  • Dispatches From
    United Kingdom
  • Supported Devices
    Universal
  • QTY
    Yes
  • Custom Info
    Universal

We accept the following payment methods:

We also accept telephone orders, Purchase Orders and Bank transfer payments.



Worldwide Delivery available on this item.

We offer multiple delivery methods for this item, add the item to cart and checkout to view and select your desired shipping method.

Customer reviews
Average rating:

Score: 4.50 (votes: 2)
Rating of votes (2)
5


1customers
4


1customers
3


0customers
2


0customers
1


0customers

Please sign in to add review
  • Dale T.
    Monday, July 2, 2018, 19:01
    Brilliant tool for pinpointing emmc testpoints without soldering. We use this daily in our Data Recovery Lab.

Returns Policy

At FoneFunShop Ltd. we have every confidence that you will be delighted with your purchase. However, in the event that you wish to return any goods purchased, then please follow the applicable policy detailed below.



Unwanted Goods - within 14 Days

You (the buyer) pay for return shipping fees.

You should inform FoneFunShop Ltd. in writing, within 14 days of receiving your item(s) either by post or by using the contact form of any return request.

You can return unwanted items within 14 calendar days of delivery and we will refund you the price paid for the items. In addition to the refund on your items; if your return request is received within 14 days of delivery, and items received within the following 14 days, then we will refund the cheapest, standard delivery option to you, unless there is another item on your order. Outside of 14 days from receipt, refunds for non-faulty returned items will not include the original delivery charge or the cost of delivering the items to us.

If you return a product to us that is not received in a brand new condition we reserve the right to return the product to you, or issue a partial refund with a deduction because the item is not fit for resale.  You should only handle the item as if you were in a high street store viewing the item as you normally would. it should not be opened or used.



Returns Exclusions (Unwanted Goods)

Please contact us by phone +44 (0)114 2437800, or by using the contact form and inform us you wish to return an item(s)*

*These terms do not affect your statutory rights.

Unfortunately we cannot refund or cancel Personalised Orders or Orders Made To The Buyers Specification
Orders containing personalised items or to the buyers specification cannot be cancelled , this includes unlock codes and iPhone unlocks. whereby the buyers IMEI number is considered unique to the order and has no resale value.
Unlock codes and iPhone unlock services are based on the unique imei number of the customers phone, and are considered as a "made to a consumers specification" order.
These orders cannot be cancelled as they have no resale value.  For example, an unlock code for john's phone would not work on jane's phone, because the 2 phones have different imei numbers. the code would simply fail on all other phones except johns.  We have to order and pay for these codes from our suppliers for the customer once they place their orders online and supply their unique imei number, the codes are no good for anyone else so they cannot be resold to a different customer.






Faulty Goods - within 30 Days

If your goods are faulty on arrival, you have 30 calendar days from receipt, in which to inform us of the fault in order to claim a full refund or exchange or repair exchange, (please note that for our business customers, different terms of sale apply), after 30 days your return will be processed under the terms of the Manufacturers’ Warranty (See below).

Goods should be returned in their original packaging complete with all accessories and documentation. Once we have verified the fault, we will conduct a repair, or issue a replacement, or full refund to you via your original payment method. We test returned items, and if our technicians find a returned item is not faulty or has been tampered with, we will return the item to you ( In certain circumstances, faults will need to be diagnosed by the manufacturers of the item before a replacement can be issued – i.e. memory card reading faults, item not powering up etc.). In this instance you will be liable for the return carriage.

Goods outside 30 calendar days shall be issued with a replacement or repair only depending on the warranty length of the product.

If a refund is required, Refunds for faulty goods will be issued back to the original payment method.

If your order was only for one item and this item has been returned then the refund cost you paid to receive this order will also be refunded.

If your order contained multiple items and you are not returning all of them, then the cost of shipping your order to you will not be refunded.

Any returns should be marked as "Returned Faulty Item" on the parcel or jiffy bag etc.

If you need to return an item, please notify us first via live chat or the contact page before using the returns form on our Returns Page





Returns Exclusions (faulty goods)

Unlocking box's and Dongles that are registered by the buyer and  becomes faulty we will offer to replace or repair it depending on the warranty length of the product.

Unfortunately we cannot refund any unlocking box or dongle that has been used to unlock  phone, we contact the manufacturer of the tool returned to check this prior to refunding or cancelling. However if faulty we can offer to replace or repair it depending on the warranty length of the product.

Unfortunately we cannot refund or cancel Personalised Orders or Orders Made To The Buyers Specification
Orders containing personalised items or to the buyers specification cannot be cancelled , this includes unlock codes and iPhone unlocks. whereby the buyers IMEI number is considered unique to the order and has no resale value.
Unlock codes and iPhone unlock services are based on the unique imei number of the customers phone, and are considered as a "made to a consumers specification" order.
These orders cannot be cancelled as they have no resale value.  For example, an unlock code for john's phone would not work on jane's phone, because the 2 phones have different imei numbers. the code would simply fail on all other phones except johns.  We have to order and pay for these codes from our suppliers for the customer once they place their orders online and supply their unique imei number, the codes are no good for anyone else so they cannot be resold to a different customer.








Replacements & Refunds

Where applicable, replacement or alternative items will be processed as promptly as possible, but please be aware that it may take up to 10 working days to issue the item. If an item is out of stock, it will then become a priority back order to be shipped once stock is available.

If you are eligible for a refund, we will refund you back to the payment method you used when you originally paid for your order. Please note: It is your responsibility to notify us of any changes to your card details i.e. you no longer have that account. Refunds can take up to 30 days to process. Refunds by credit card are made to the same credit card that was used for the original purchase*.  Refunds by Paypal will be refunded back to the original Paypal payment account.*

Any return that is not accompanied with the returns form or returns reference number will be held by FoneFunShop for 30 days, awaiting the return of the completed form. Items that have not been reclaimed by you within this period will be disposed of after this time and will result in the return being completed without action.

*These terms do not affect your statutory rights.






Warranty

Where a product develops a fault, a repair or replacement will be offered, as long as the item is within its manufacture warranty timescale.

Where a product develops a fault outside its manufacture warranty timescale, we will try to help by offering a chargeable repair if possible, or if not possible you would need to purchase the replacement item at the current value.

How To Perform Direct eMMC (ISP) Physical Memory Dump With VR Table

Did you know you can now perform physical memory dumps of android devices emmc chip without the need for chip-off or indeed any soldering?

With the New VR Table you can connect to the phones eMMC chip via ISP (in system programming) also known as DIRECT EMMC without any soldering at all !!



This method is used to connect to the emmc chip for data extraction (physical dump) without performing actual chip-off (removing the chip for analysis via chip-off reader).

The probes are connected to the pinouts located on the phones logic board that ultimately connect to the relevant pinouts on the emmc chip itself.

These pinouts are available in the support areas of the emmc specific tools below, or checkout www.emmcpinouts.com too.

Then connect the VR Table to you Tool of choice

  • EMMC Pro Tool
  • Z3X Easy Jtag
  • Riff Box 2
  • Medusa Pro Box

Also because emmc chips contain their own controller / processor, you are able to dump the contents of the emmc chip very easily once the connection is established using tools like Riff Box 2, Z3X Easy Jtag, EMMC Pro Tool etc.



How to perform Direct eMMC (ISP) without chip-off

Basically you need to locate the pinouts on the phones logic board for the eMMC chip and match them to the pinouts on your box, once you do this, the connection can be made to the emmc chip

For this demonstration we are using the eMMC Pro Tool to perform a physical memory dump of a Samsung i8190



Step 1 - Find Pinout For The Phone

First we locate the pinout diagram in emmc pro tool support area

Here we have pinout schematic for a Samsung i8190, all you need to do is match this with the pinouts of your box using simple jumper cables (see the images below to understand this)





Step 2 - Find Pinout for EMMC Pro Tool Box

then we need to know the pinout of the eMMC Pro Tool box itself



Step 3 - Match The Connections

NOTE: You will also notice that in this image we have used the VCC power connection (red) from the VR Table itself, rather than using the power connection from the emmc pro tool, this is a valuble option and gives greater felxibilty to perform a stable connection. But remember you cannot use power from both the box and the VR Table, only use one or the other





Step 4 - Conclusion

Once you have matched the connection, you are ready to read the physical memory dump.

Save it to your local hard drive on your PC, you can simply feed this into your physical analyzer like UFED etc. to obtain the needed user data.
