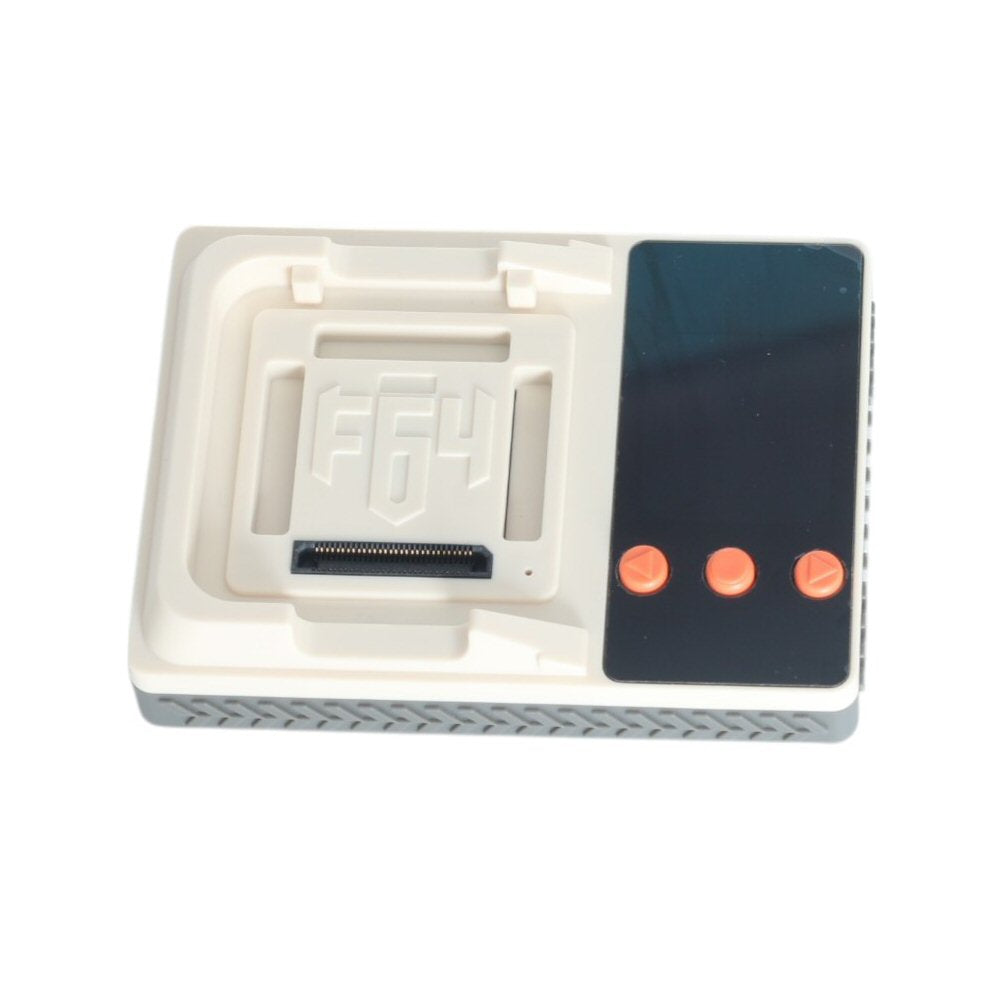

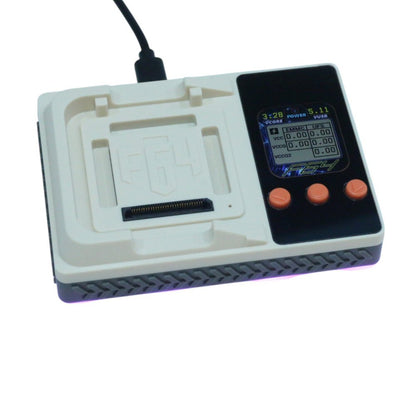

Flash 64 Ultra NAND programmer for UFS eMMC MicroSD NanoSD

The Flash 64 Ultra is a managed NAND programmer for UFS, eMMC, MicroSD and NanoSD (NM) storage. It is aimed at mobile forensics, physical data recovery and chip-level repair work, where a memory chip needs to be read, written or configured directly.

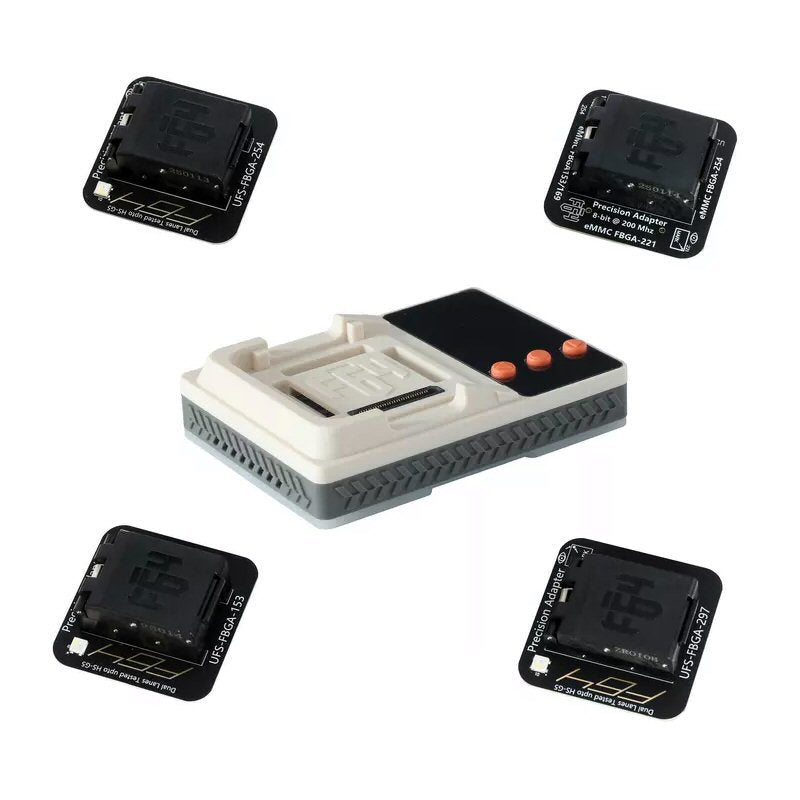

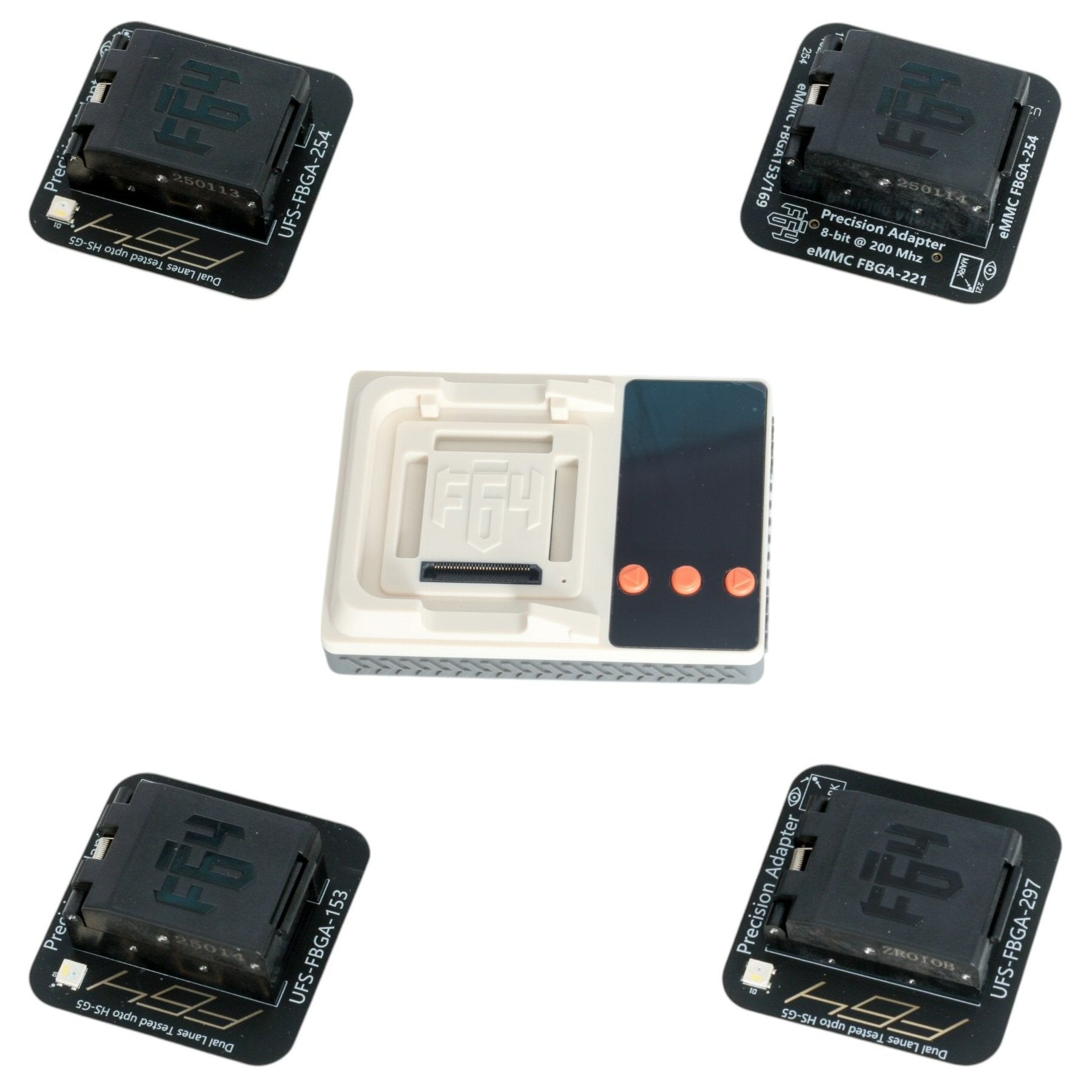

The kit includes a 4-in-1 eMMC adapter and three UFS adapters for 153, 254 and 297-ball packages, so the common phone storage chips can be handled from one box.

Features:

• Full UFS Compatibility: Supports UFS 1.0 to 4.1, with HS-Gear speeds up to 420 MB/s.
• eMMC Support: eMMC v4.1 to 5.1 at up to 8-bit HS200, 200 MB/s.
• Nano Memory Card (NM) Support: Reads and writes at 90 MB/s in 4-bit mode.
• MicroSD Versatility: SDSC, SDHC, SDXC and SDUC, with UHS-I speeds up to 104 MB/s.
• Multi-Interface Support: RFFE, JTAG, SPI, I2C and UART.

Data Access:

• High-Level Access: Read and write Android OS partitions.
• Low-Level Access: Work directly with RAW partitions, logical units and RPMB.
• UFS and eMMC Configuration: Edit UFS descriptors, attributes and flags, with full eMMC Extended CSD access.

Technical Specifications:

• CPU: Xtensa LX7 MCU @ 240 MHz
• External SRAM: 8 MB
• Internal SRAM: 512 KB
• Flash Memory: 16 MB
• Wi-Fi Module: 2.4 GHz Wi-Fi (802.11 b/g/n)
• Supported OS: Windows 8, 10, 11

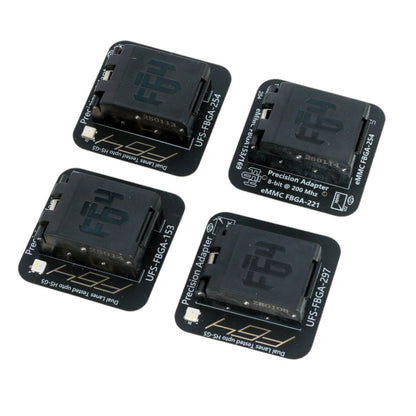

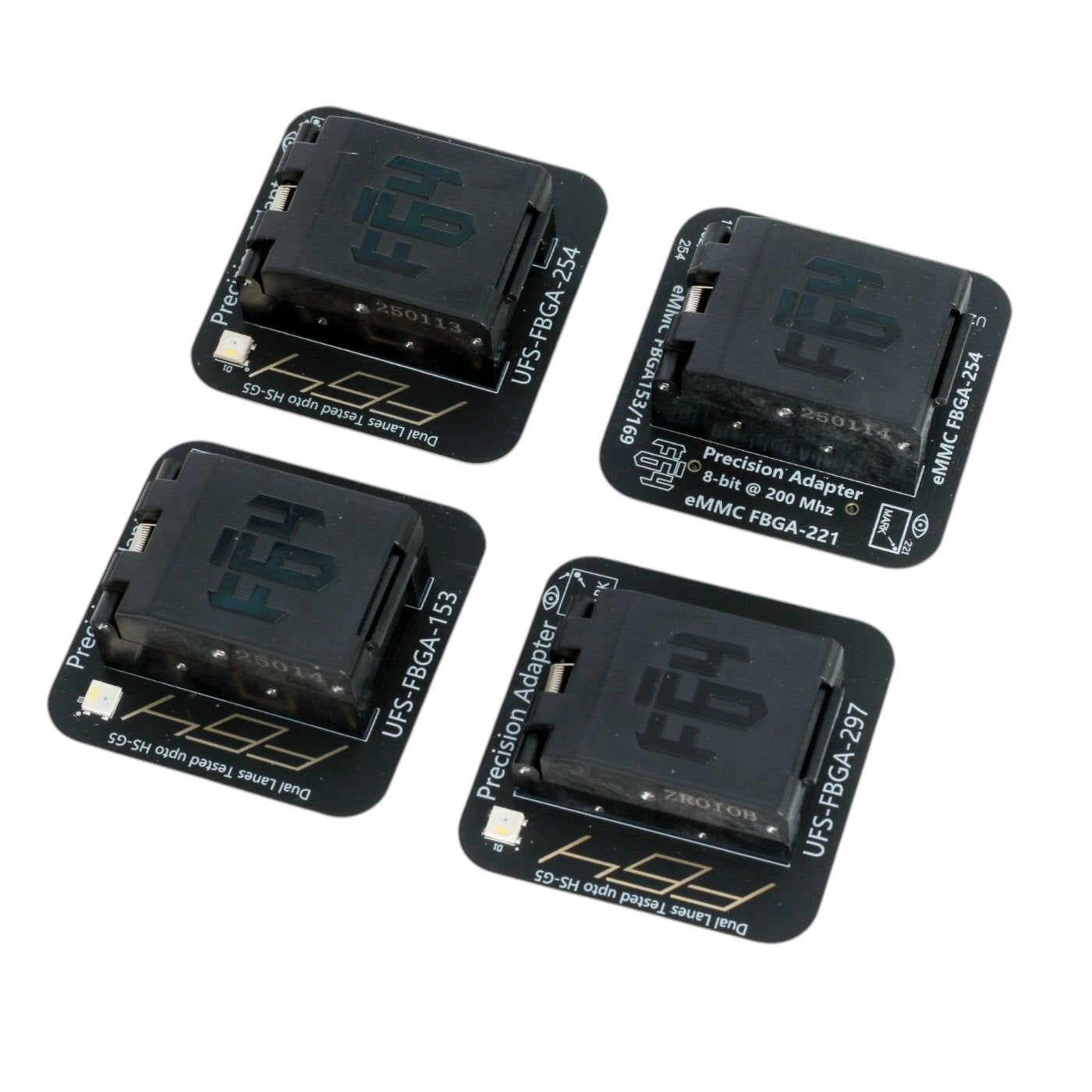

Adapters:

• eMMC 4-in-1 Adapter: FBGA-254, FBGA-162/186, FBGA-153/169 and FBGA-221
• UFS-FBGA-153 Adapter: 153-ball UFS packages
• UFS-FBGA-254 Adapter: 254-ball UFS packages
• UFS-FBGA-297 Adapter: 297-ball UFS packages

Videos:

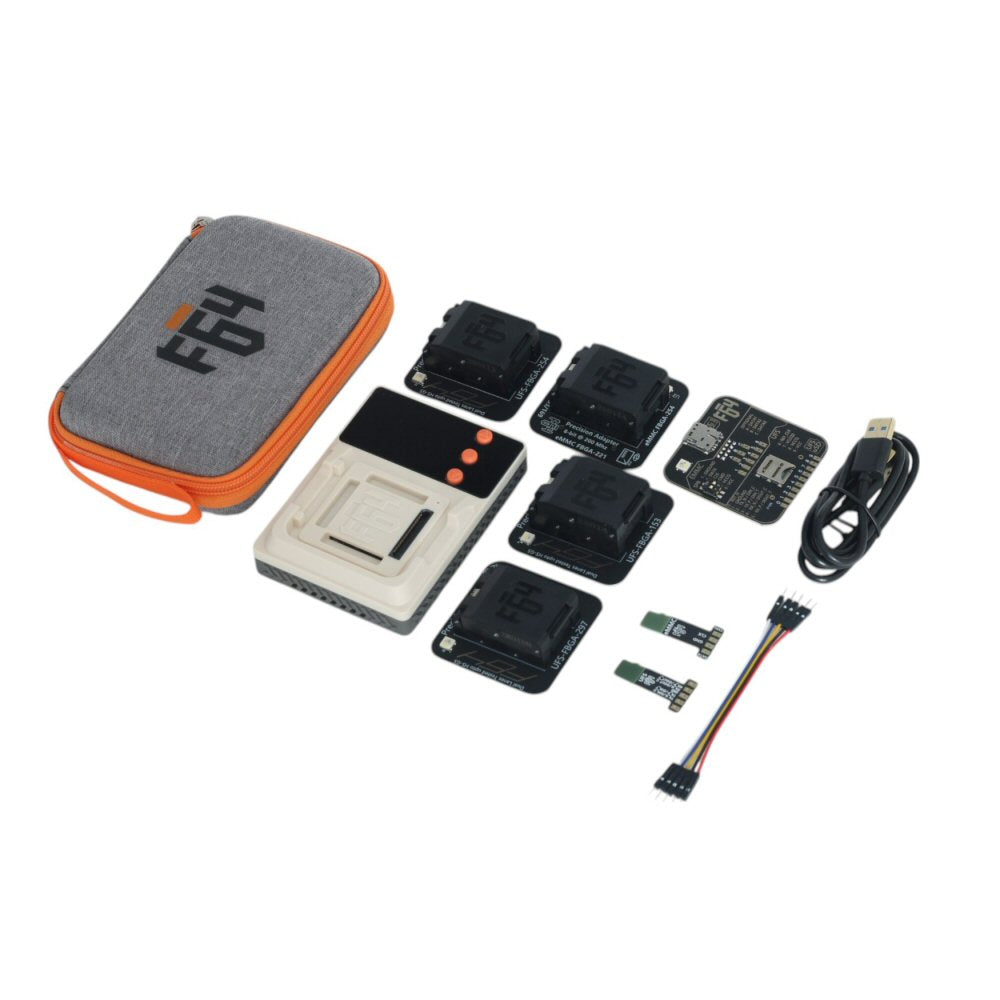

Package Contents:

• 1 x Flash64 Ultra
• 1 x eMMC 4-in-1 Adapter
• 1 x UFS-FBGA-153 Adapter
• 1 x UFS-FBGA-254 Adapter
• 1 x UFS-FBGA-297 Adapter
