- Trinocular stereo zoom microscope with continuous zoom giving 7x to 50x optical magnification.
- Wide-angle WF10X22 eyepieces and a 100mm working distance leave room for tools under the lens.
- RL-033D LED light with adjustable brightness and a precision gear zoom handwheel.
- Trinocular port with M-28 CTV adapter for a microscope camera, sold separately.
- Package contains base, column, focusing bracket, head, LED light, CTV adapter, eye mask and 2 eyepieces.
The Relife RL-M5T B11 is a trinocular stereo zoom microscope for inspection and precision work on electronics, including phone logic boards, chip-off and ISP preparation, and component-level fault finding. The third (trinocular) port lets you add a camera so the view can be shown on a monitor or recorded.

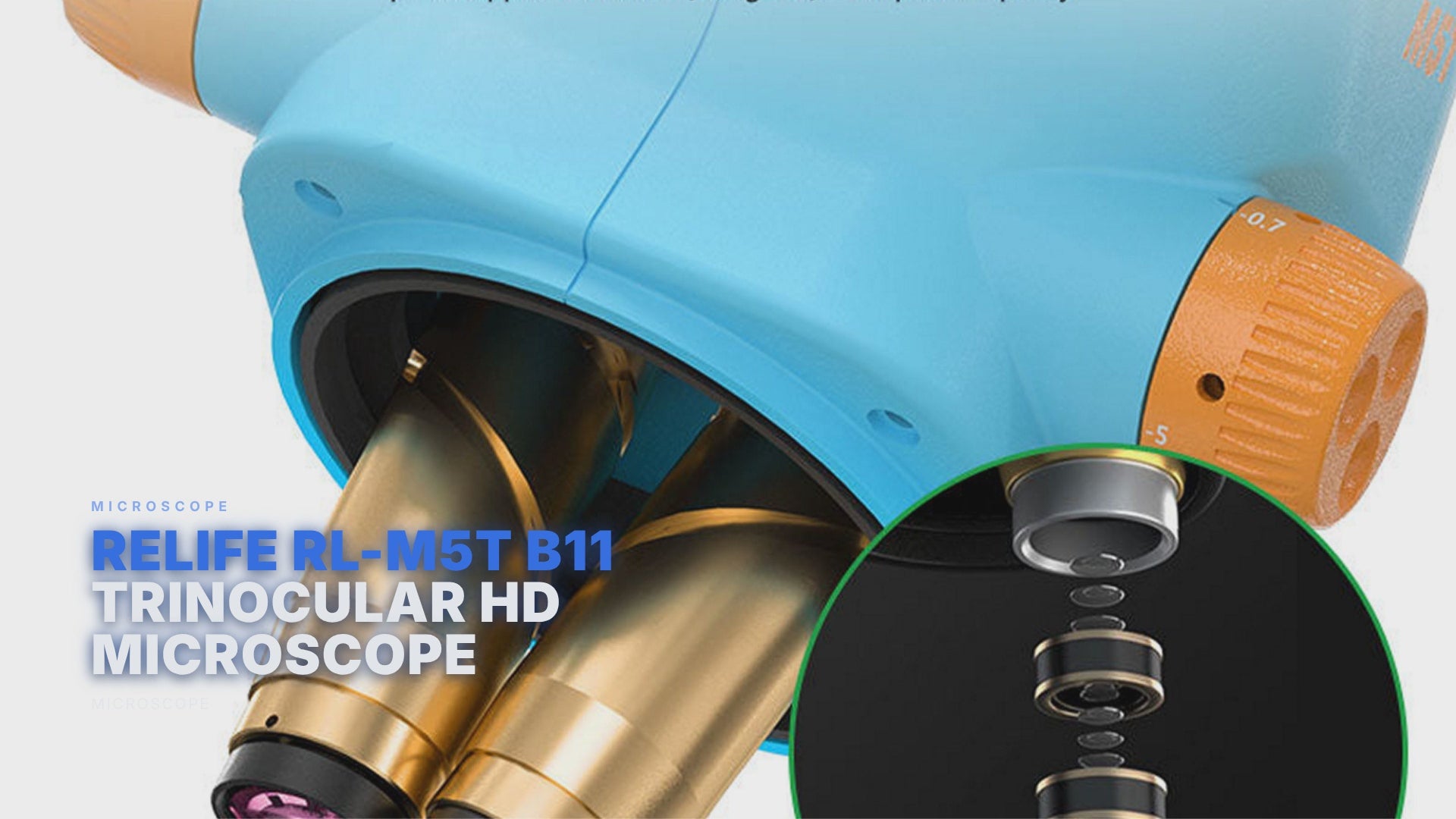

The zoom body gives a continuous zoom range of 0.7x to 5.0x. With the supplied WF10X22 wide-angle eyepieces this gives an optical magnification of 7x to 50x, adjusted with a precision gear handwheel so the image stays clear as you zoom.
A 100mm (4 inch) working distance leaves room for a soldering iron, hot air nozzle or probes under the lens. The large aluminium alloy base keeps the stand stable and gives a wide working area.
Lighting comes from the RL-033D buckle-on LED light, which has adjustable brightness for focused illumination of the work area.
