Green UV Oil Coating: Prevents solder bridging and protects adjacent pads, enhancing visibility and precision during repairs.
Durable Plastic: Built to withstand UV exposure without warping ideal for use with curing lamps.
Laser-Cut Precision: Micron-level cut-outs perfectly match standard IC layouts for accurate and repeatable repairs.
Improved Repair Efficiency: Reduces clean-up and error rates, streamlining the solder mask application process.
Compact: Easy to store and handle perfect for technicians in repair labs or mobile service environments.

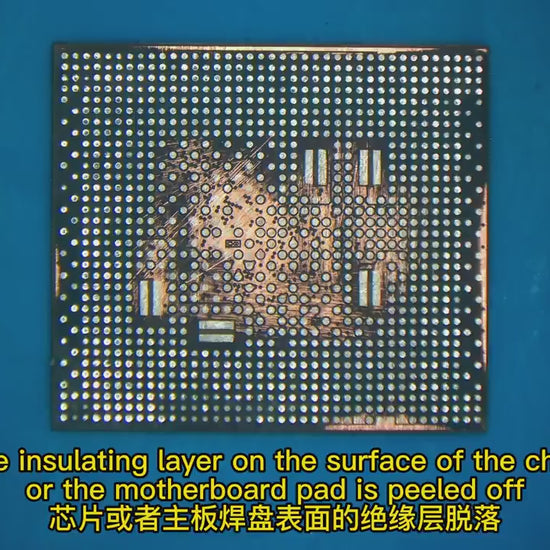

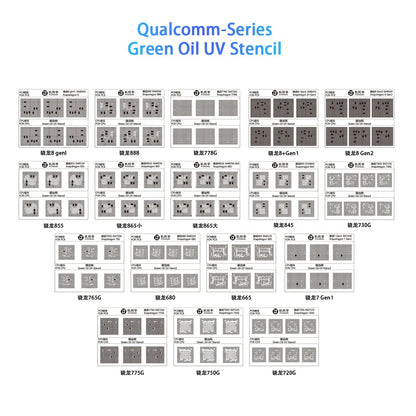

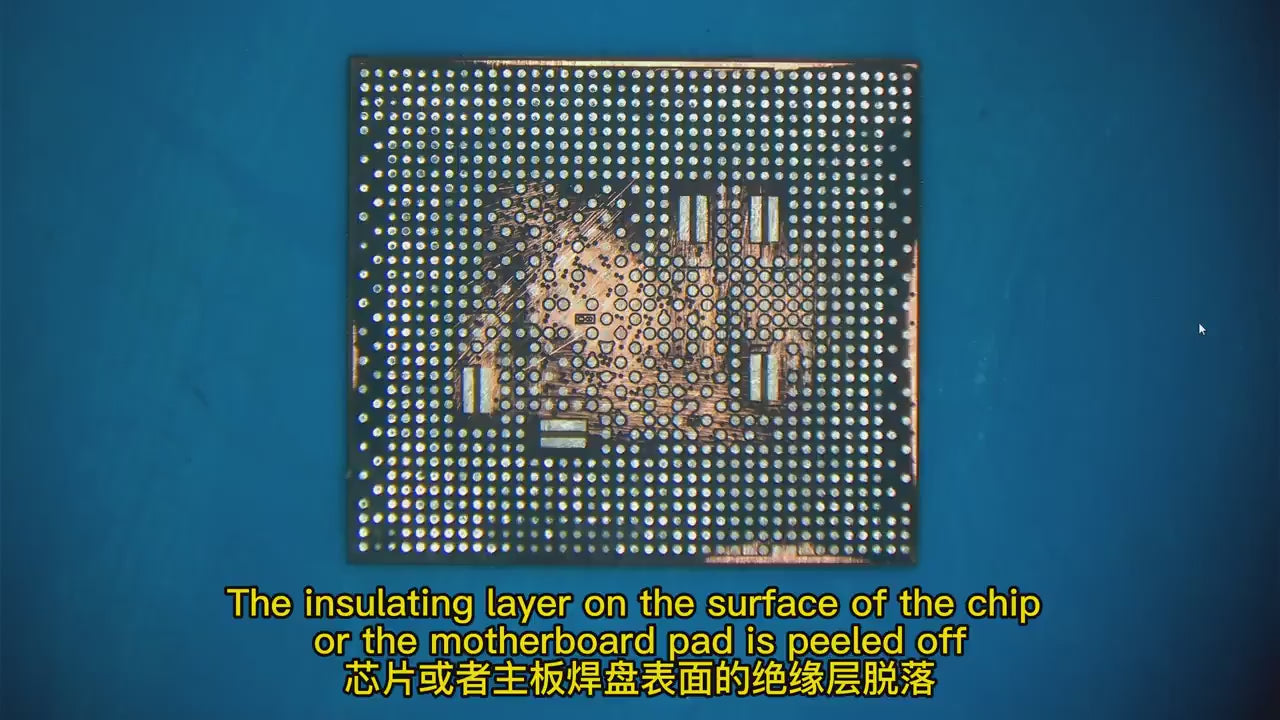

The GS-01 is a professional-grade UV stencil specifically engineered for micro soldering and IC chip repairs. When an IC chip is scratched or damaged, this stencil allows you to apply UV Green Oil / Paint for PCB repair with pinpoint accuracy shielding the solder balls and pads to preserve their conductivity being affected.

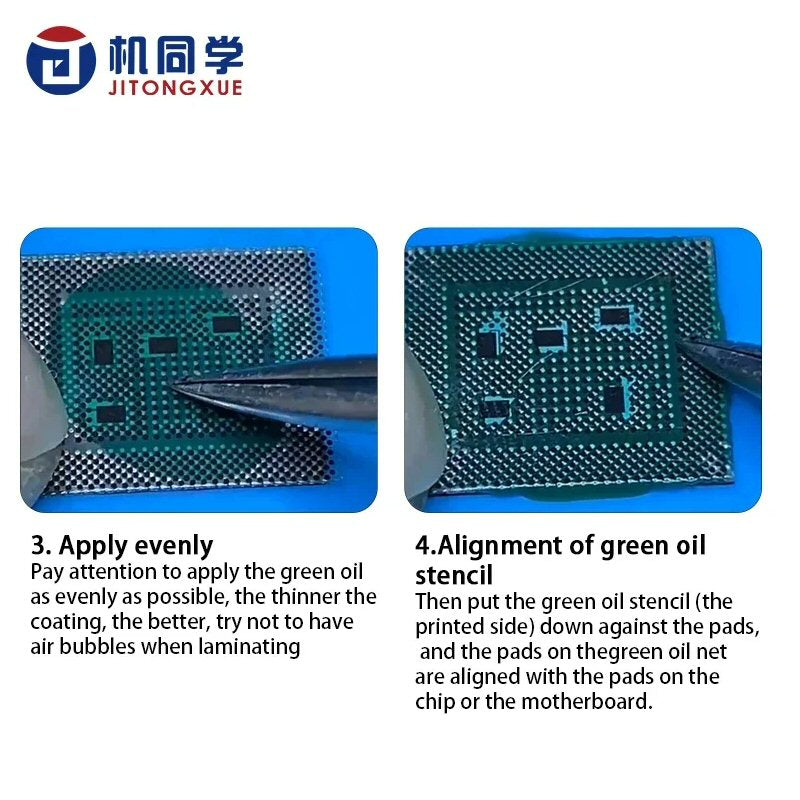

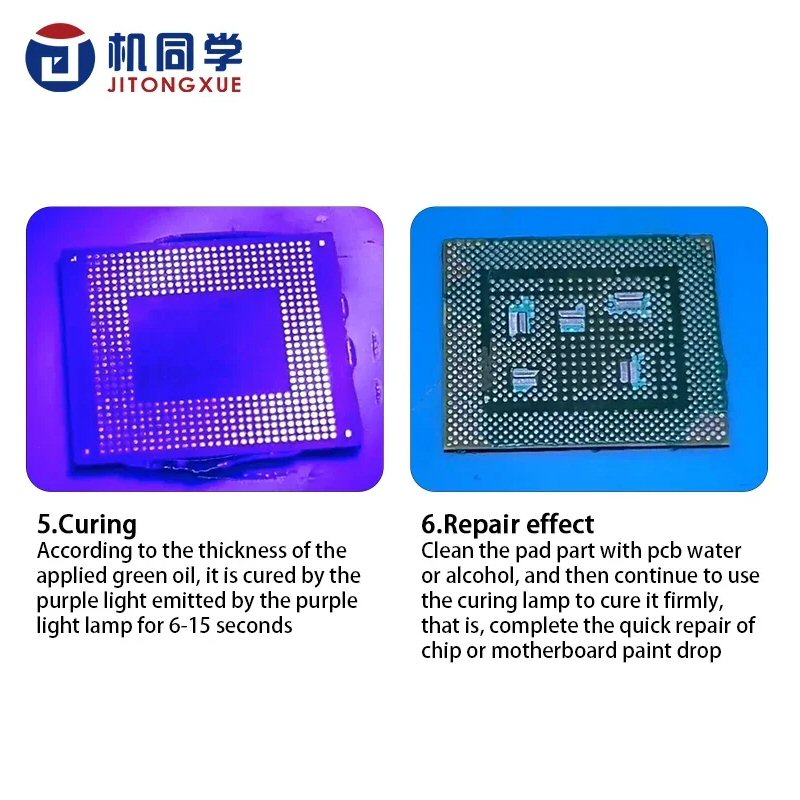

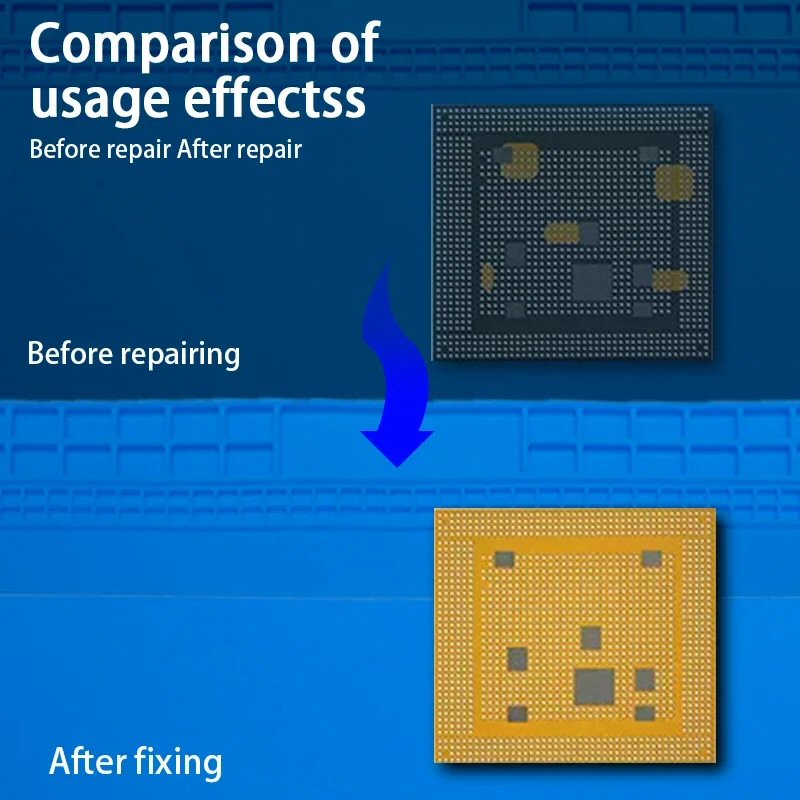

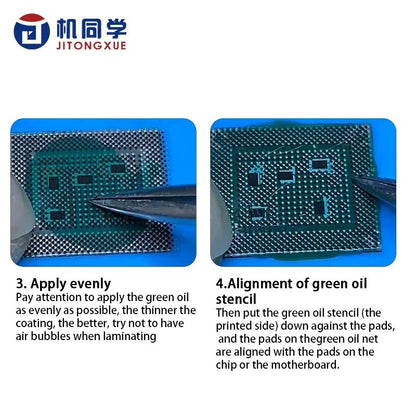

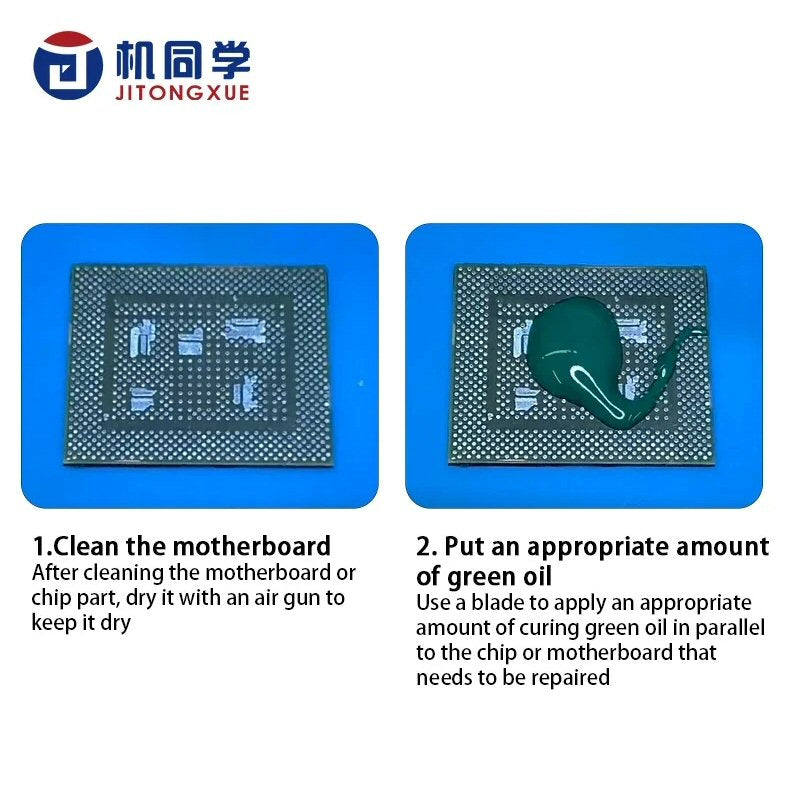

How It Works: Simply apply green UV oil to the damaged area of the chip, then overlay the GS-01 stencil. The stencil ensures the oil does not spread to the solder points. After aligning, cure the oil using a UV lamp. The result is a clean, insulated repair that leaves all conductive pads untouched and fully functional.
Features: Green UV Oil Coating: Prevents solder bridging and protects adjacent pads, enhancing visibility and precision during repairs.
Durable Plastic: Built to withstand UV exposure without warping ideal for use with curing lamps.
Laser-Cut Precision: Micron-level cut-outs perfectly match standard IC layouts for accurate and repeatable repairs.
Improved Repair Efficiency: Reduces clean-up and error rates, streamlining the solder mask application process.
Compact: Easy to store and handle perfect for technicians in repair labs or mobile service environments.
