MiPiTester Ultra Box Full Kit with 3 Sockets For UFS-BGA153, UFS-BGA254, UFS-BGA297 with MiPi EMMC & UFS ISP Adapter

The MiPiTester Ultra Box Full Kit is an FPGA-based UFS and eMMC programmer bundle for mobile forensics and physical data recovery. It pairs the MiPi Ultra box with three ICFriend UFS sockets (BGA153, BGA254 and BGA297) and an ICFriend eMMC/UFS ISP adapter with UFS and eMMC ISP cable kits, so storage can be accessed either in-circuit on the board or directly after chip-off.

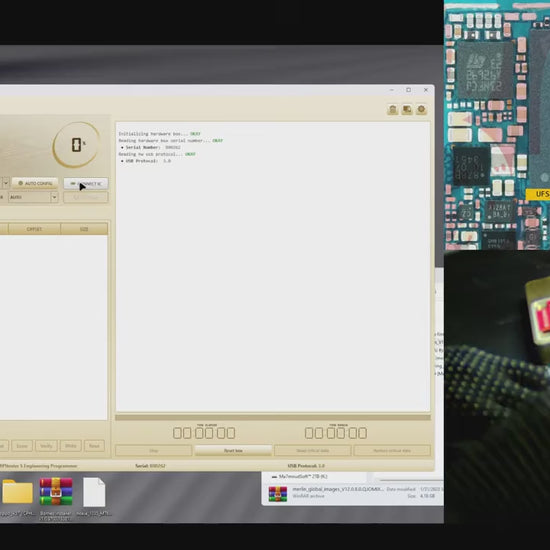

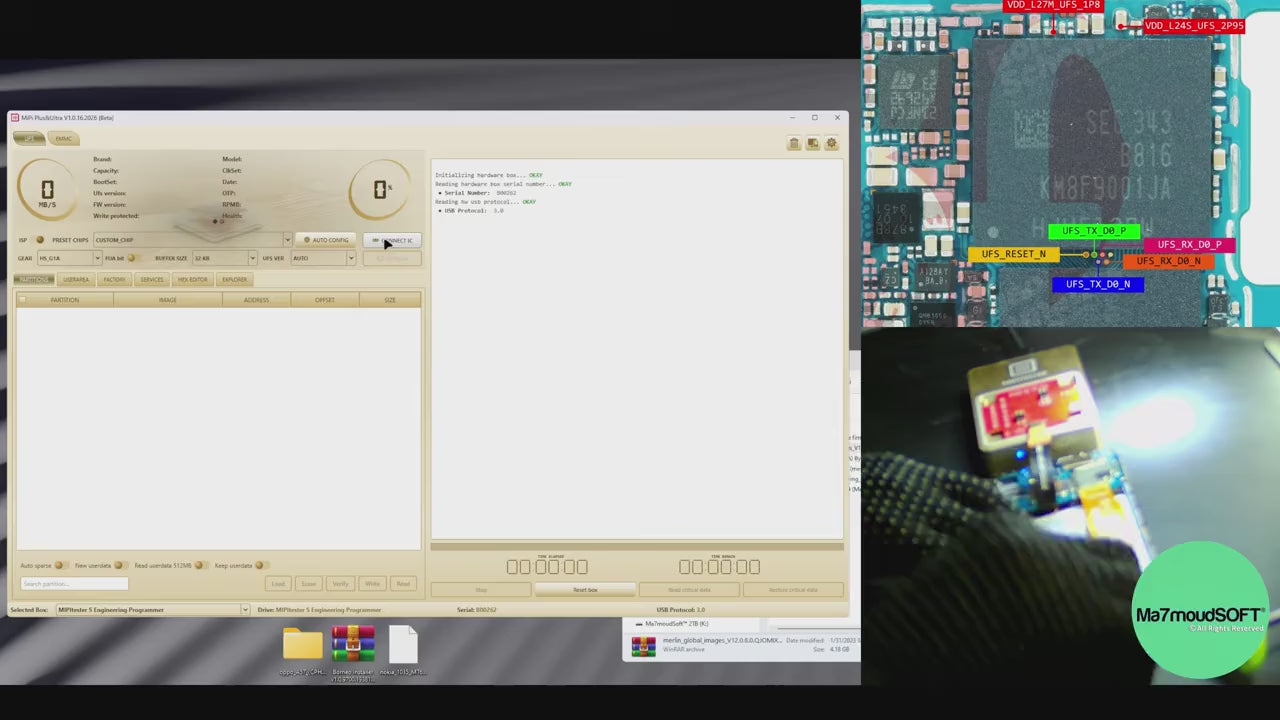

For ISP (in-system programming) extraction, the ISP adapter and flex cables are soldered to the ISP pinouts on the phone's logic board. This lets you read and write the UFS or eMMC storage without removing the chip - useful when a handset is dead, will not boot, or has a damaged screen or housing but the data on it still needs to be recovered.

For chip-off work, the three sockets take UFS chips in BGA153, BGA254 and BGA297 packages once they have been removed from the board, so the chip can be read or written directly. Three black socket shims (limit frames) are also supplied with the kit.

The supplier specifies read and write speeds of up to 380 MB/s over USB 3.0, with support for mainstream eMMC and UFS chips including Samsung, SK Hynix and Micron. The software includes an online HEX editor and a built-in Linux file manager for editing blocks directly, without reading or writing the whole storage. A Windows 10 or 11 PC with an NVMe SSD is required.

The kit is aimed at digital forensic units, law enforcement labs, data recovery specialists and phone shops offering data recovery from damaged or dead smartphones. According to the supplier it can also be used on boot loop, dead boot and system partition faults, and on car navigation and drone flash storage.

Features:

• FPGA-based MiPiTester Ultra programmer for UFS and eMMC storage
• Read and write speeds of up to 380 MB/s via USB 3.0 (supplier specification)
• ICFriend sockets for UFS BGA153, BGA254 and BGA297 chips for chip-off reading and writing
• ICFriend eMMC/UFS ISP adapter with USB-C connection for in-circuit access via ISP pinouts
• Separate UFS and eMMC ISP flex cables, each with a USB adapter board and three flex adapter boards
• Online HEX editor and built-in Linux file manager for direct block-level editing

Compatibility:

• UFS chips in BGA153, BGA254 and BGA297 packages (sockets)
• UFS and eMMC devices with accessible ISP pinouts (ISP adapter and cables)
• Requires a Windows 10 or 11 PC with an NVMe SSD and a USB 3.0 port

Package Contents:

• 1 x MiPiTester MiPi Ultra Box
• 1 x ICFriend NB-UFS-BGA153 Socket Adapter
• 1 x ICFriend NB-UFS-BGA254 Socket Adapter
• 1 x ICFriend NB-UFS-BGA297 Socket Adapter
• 1 x ICFriend eMMC UFS ISP Adapter
• 1 x ICFriend UFS ISP Cable with USB adapter board and 3 flex adapter boards
• 1 x ICFriend eMMC ISP Cable with USB adapter board and 3 flex adapter boards
• 3 x Socket Shims (Limit Frames)
