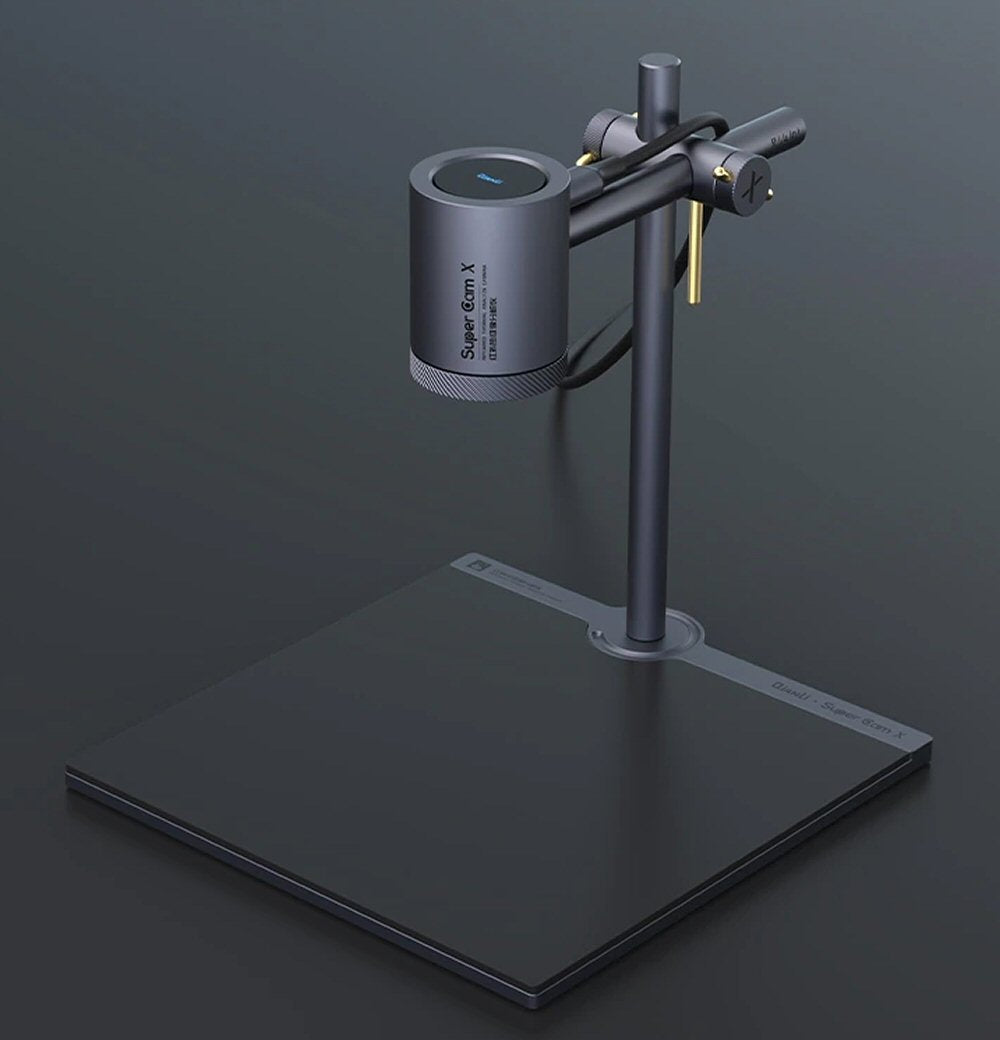

QianLi Super Cam X Thermal Imaging Camera For Phone LogicBoard Fault Detection

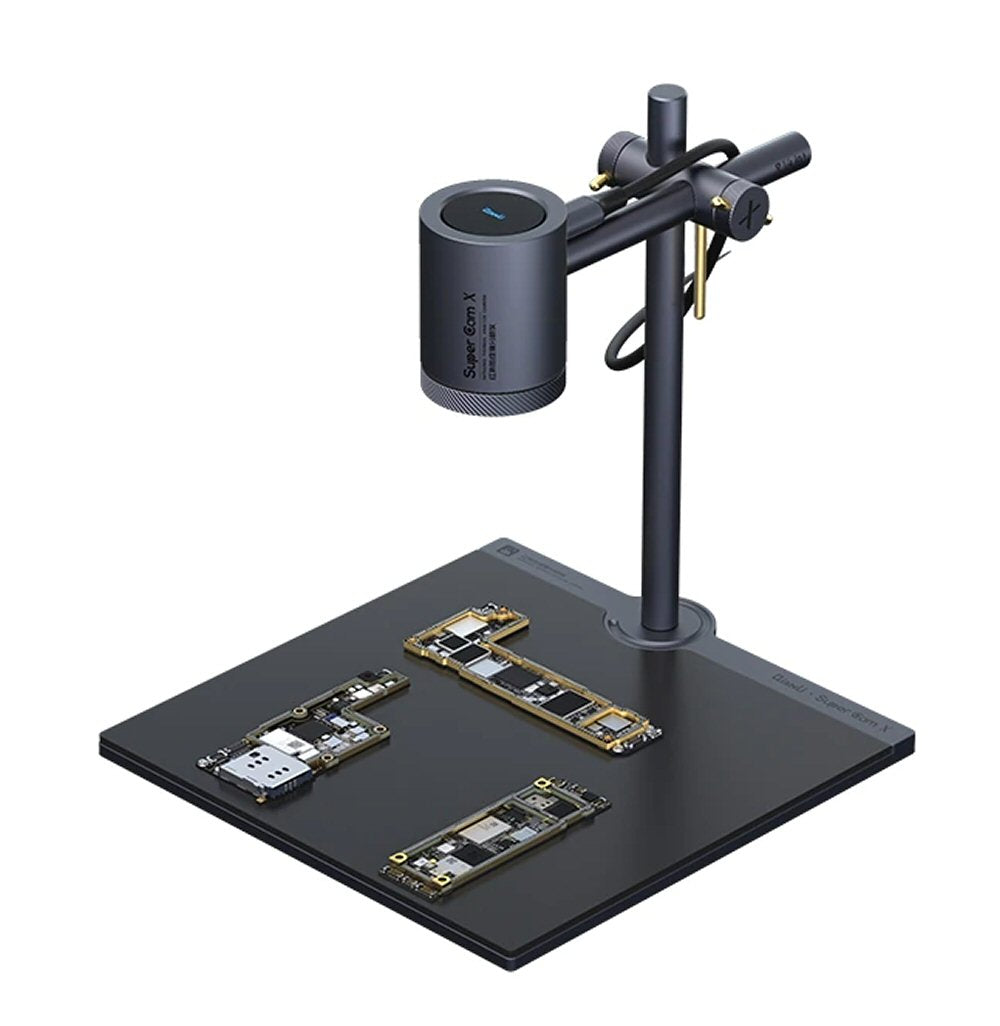

The QianLi Super Cam X is a thermal imaging camera for board-level fault finding on phones, tablets and other electronics. Power the logic board, and the camera shows where heat builds up, so a shorted capacitor, leaking line or failing IC can be located quickly before you start removing parts.

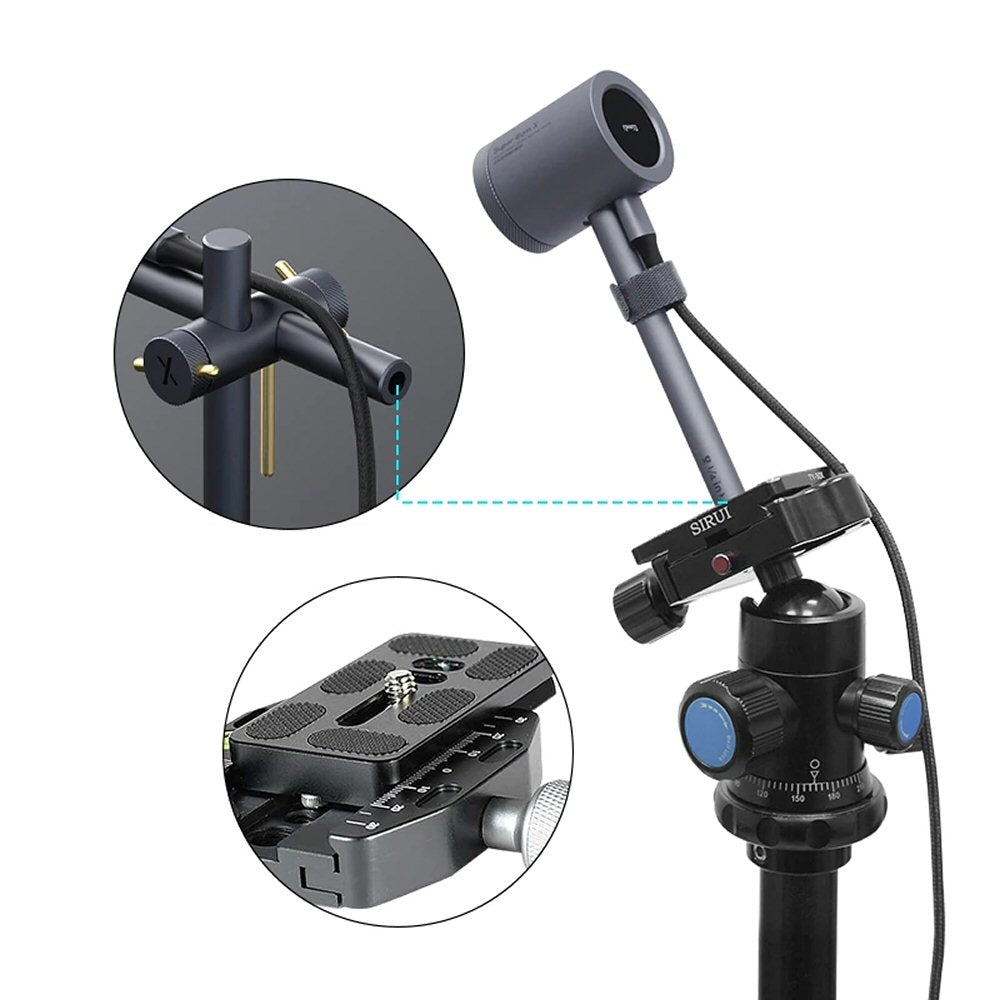

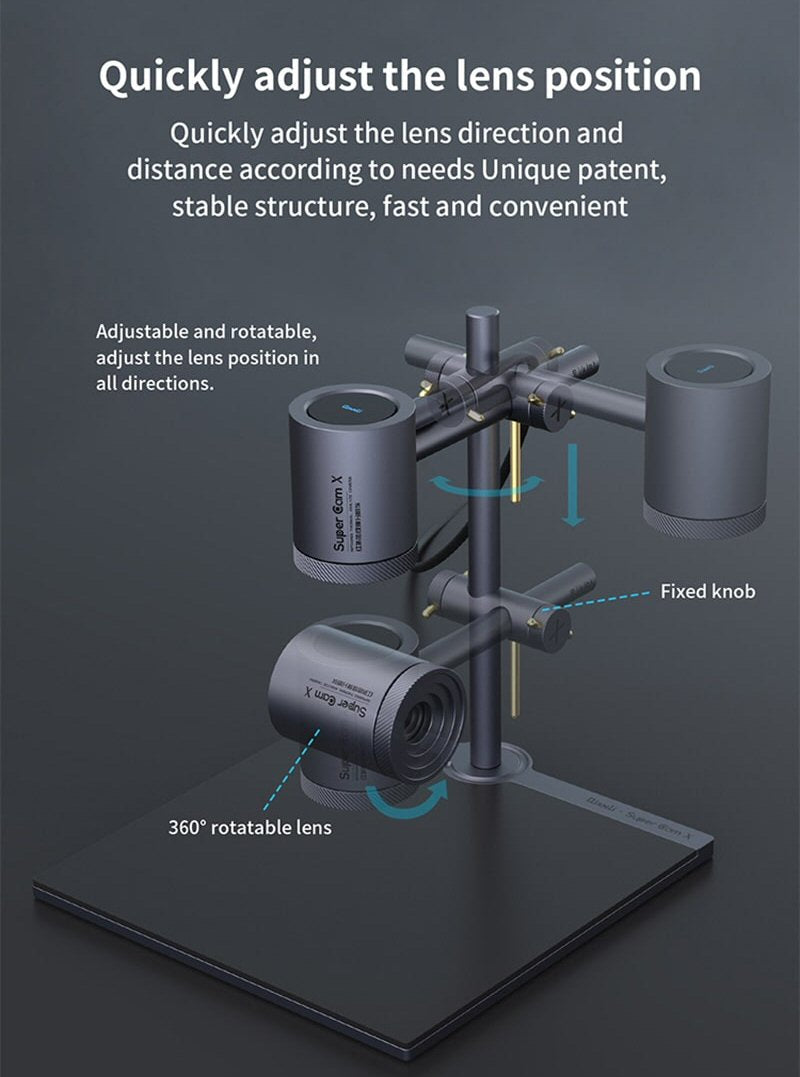

It uses an uncooled vanadium oxide (VOx) detector with a 260 x 200 resolution (52,000 pixels), a 7 to 14 micron wavelength range and a 25Hz frame rate. The 42 x 32 degree view covers a full phone board from the supplied stand.

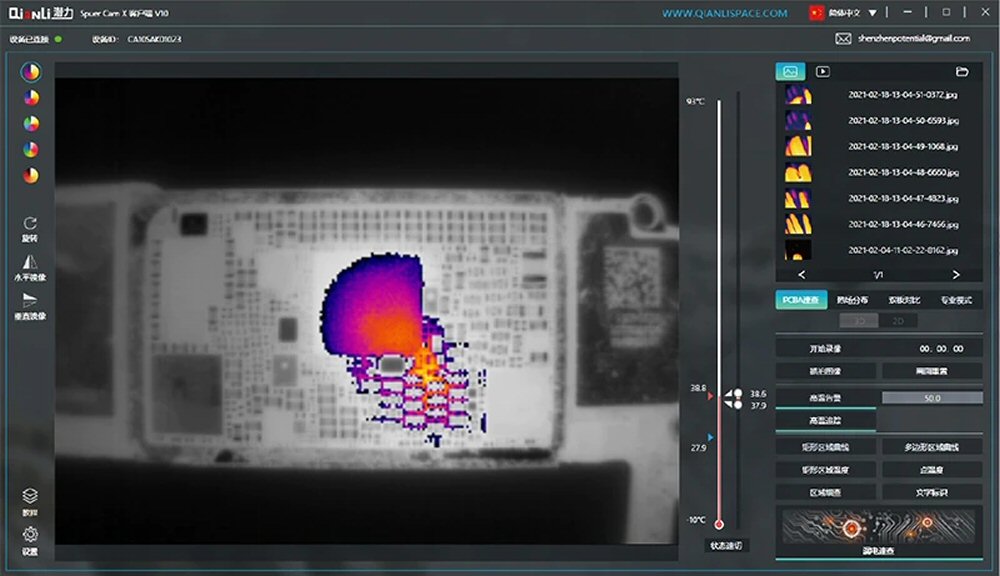

The PC software analyses the thermal image and can compare a known good board with a faulty one, which helps pick out the component running hot. Photos are saved as JPG (640 x 480) and video as MP4.

The camera connects by Type-C to USB and runs from 5V DC with a power draw under 250mW. A QianLi one-button power cable (not included) is a convenient way to power the board under test.

Features

• Uncooled vanadium oxide (VOx) thermal detector

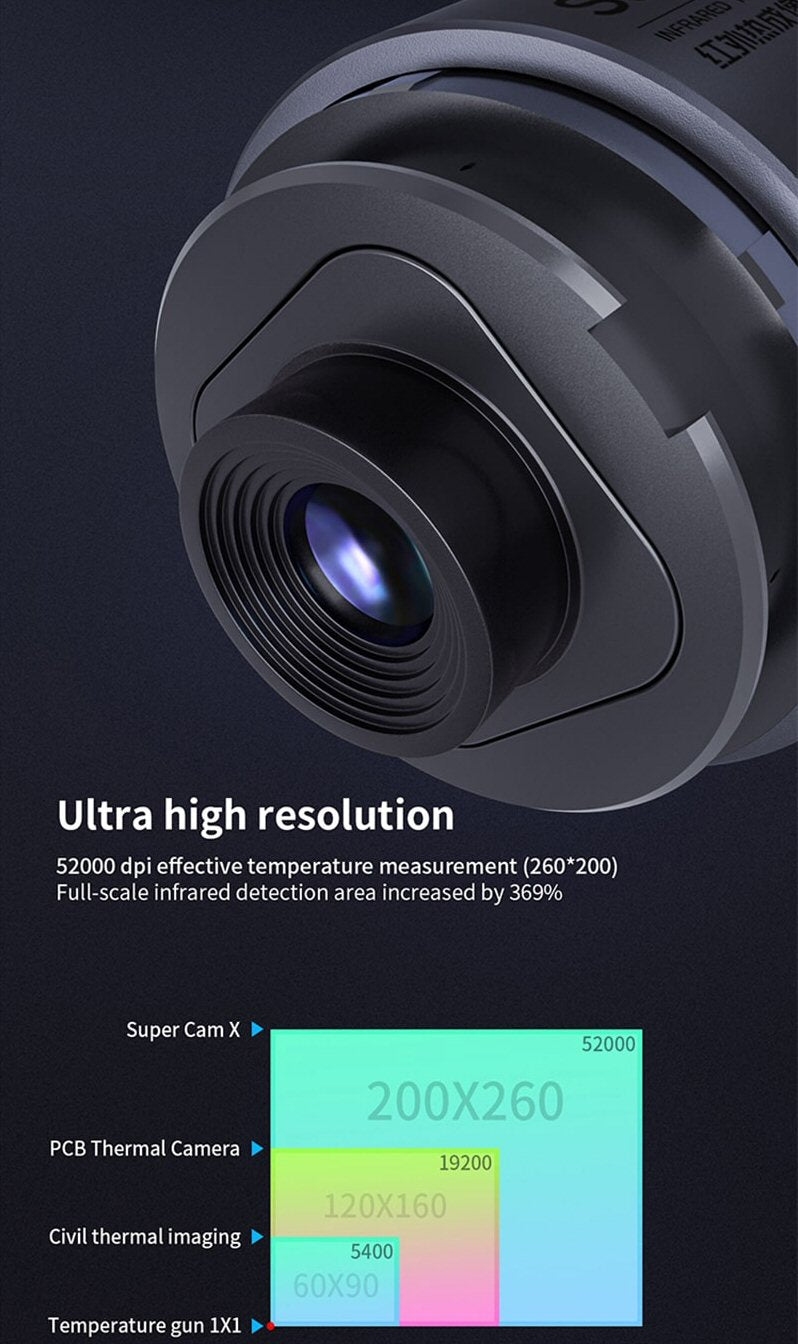

• 260 x 200 resolution (52,000 pixels)
• 7 to 14 micron wavelength range
• 42 x 32 degree field of view
• 25Hz frame rate
• Normal and faulty board comparison in the PC software
• JPG photo and MP4 video capture

Compatibility

• Phone, tablet and other PCB logic boards
• Windows PC with USB port for the analysis software

Item Specifics

• Brand: QianLi
• Model: Super Cam X
• Detector: uncooled VOx
• Resolution: 260 x 200
• Wavelength: 7 to 14 micron
• Frame rate: 25Hz
• Input: 5V DC, under 250mW
• Interface: Type-C to USB

Package Contents:

• 1 x Thermal imaging host

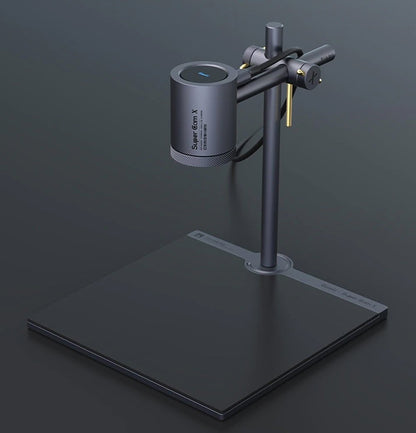

• 1 x Thermal imaging holder
• 1 x Thermal imaging base
• 1 x Power adapter
