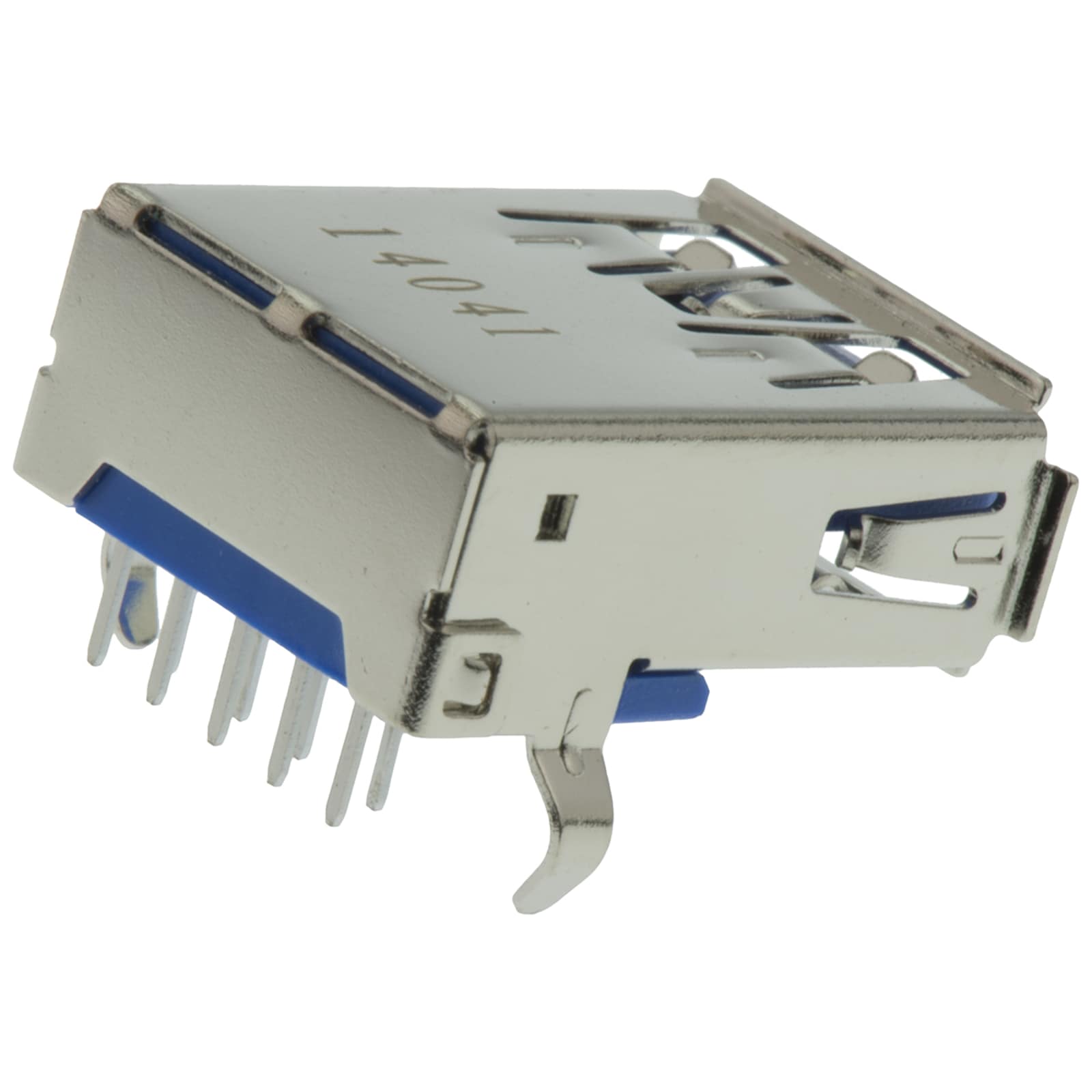

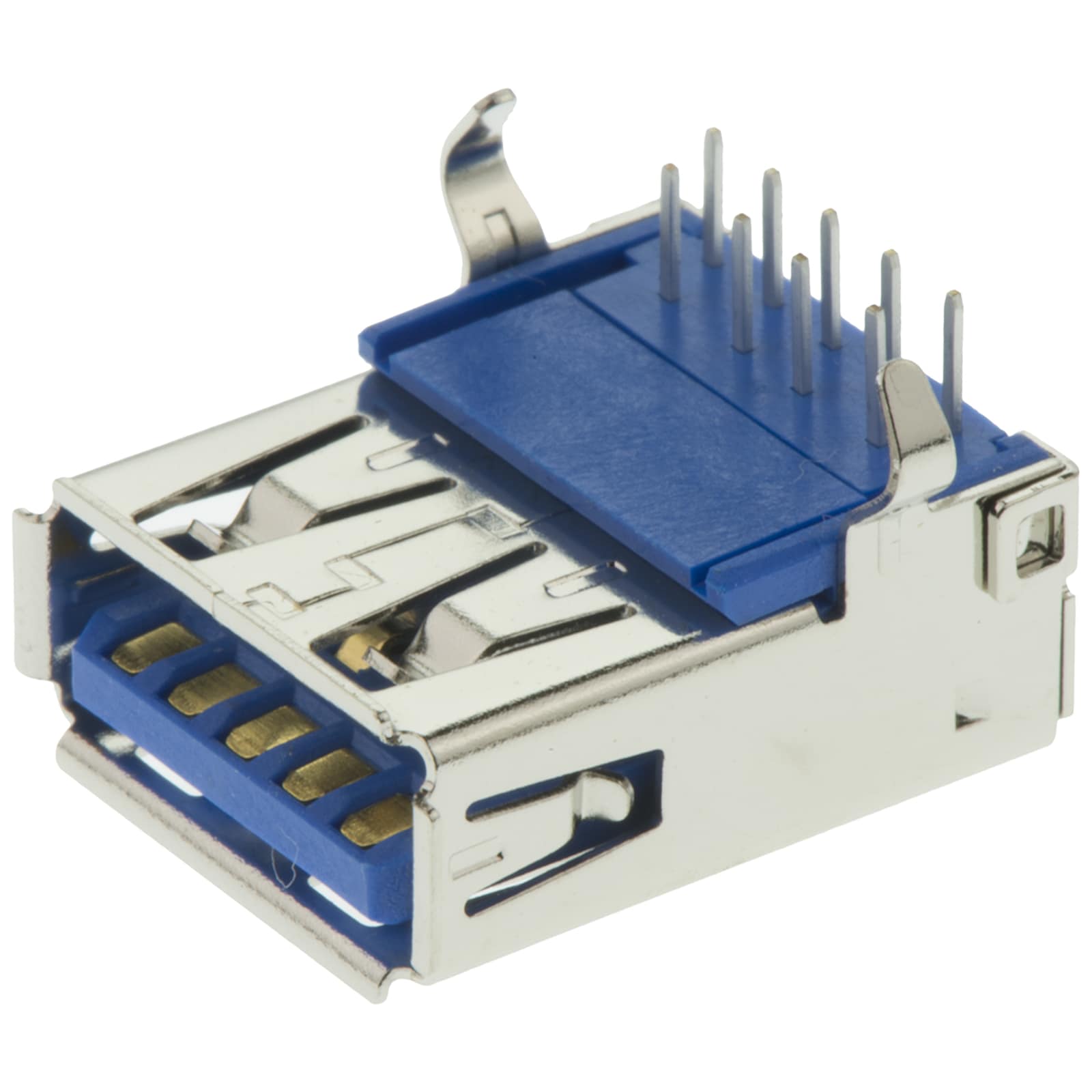

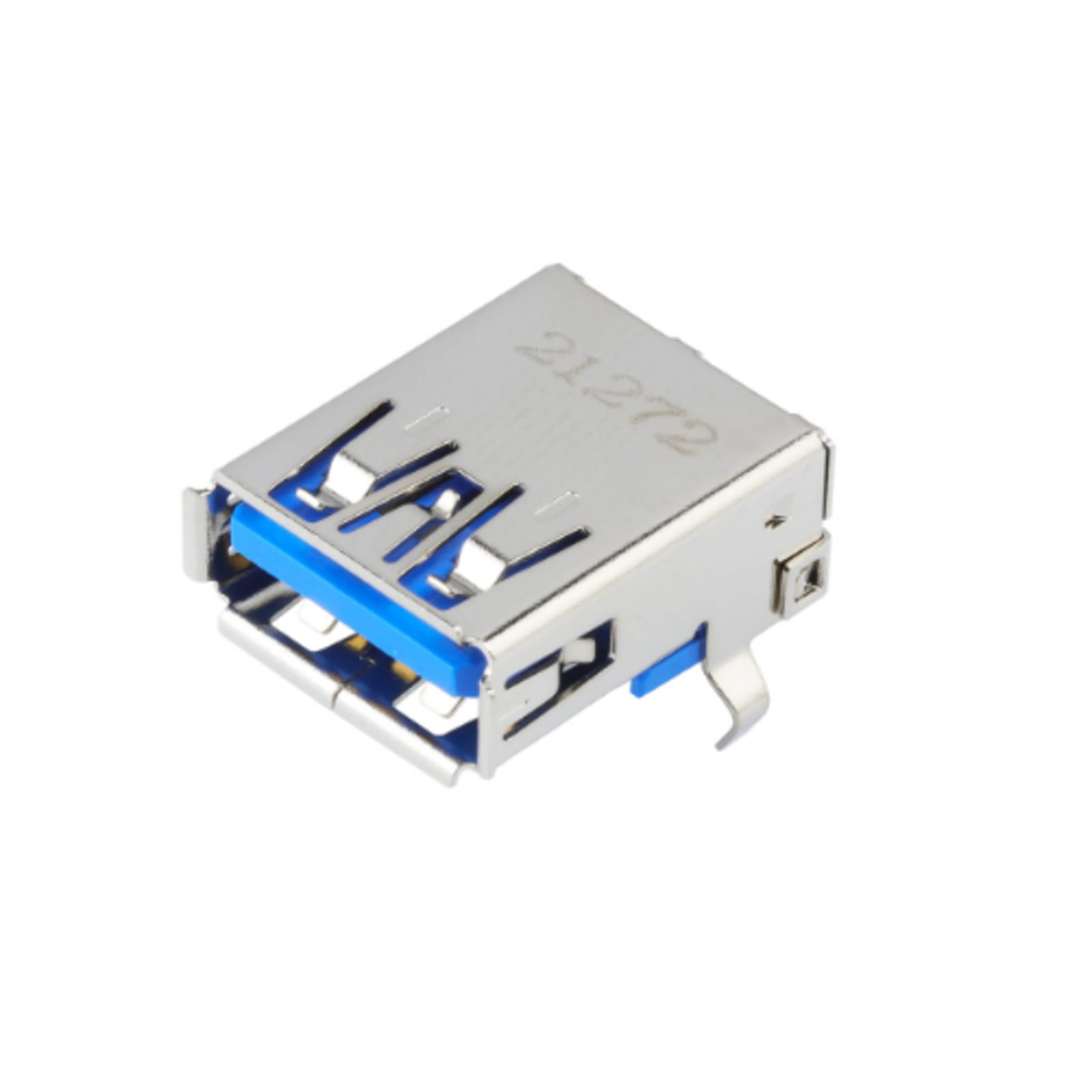

Molex Right Angle, Through Hole Female - 1 Port Type USB Type A USB Connector USB 3.0 (48405-0003)

The Molex 48405-0003 is a premium USB 3.0 Type A single-port receptacle connector for through-hole PCB mounting. This right-angle connector provides a reliable USB Type A port solution for circuit board designs, featuring the industry-standard blue housing that instantly identifies it as a USB 3.0 SuperSpeed port.

Delivering data transfer speeds up to 4.8Gbps, this USB 3.0 connector is ten times faster than USB 2.0 while maintaining full backward compatibility with USB 2.0 and USB 1.1 devices. The 9-position, 2-row contact configuration with gold-plated copper alloy pins ensures consistent signal integrity and a dependable connection rated for up to 5,000 mating cycles.

Built with high-temperature halogen-free blue nylon housing, this connector withstands infrared reflow soldering temperatures up to 225 degrees Celsius, making it compatible with modern PCB assembly processes. The right-angle orientation is ideal for low-profile device designs where vertical space is at a premium. Operating temperature range spans minus 20 to plus 85 degrees Celsius.

With a current rating of 1.8A and voltage rating of 30V, this connector suits a wide range of applications including industrial automation, telecommunications, security systems, and consumer electronics. Keying and polarisation features ensure correct mating every time.

Package Contents:

• 1 x Molex 48405-0003 USB 3.0 Single Port Connector
